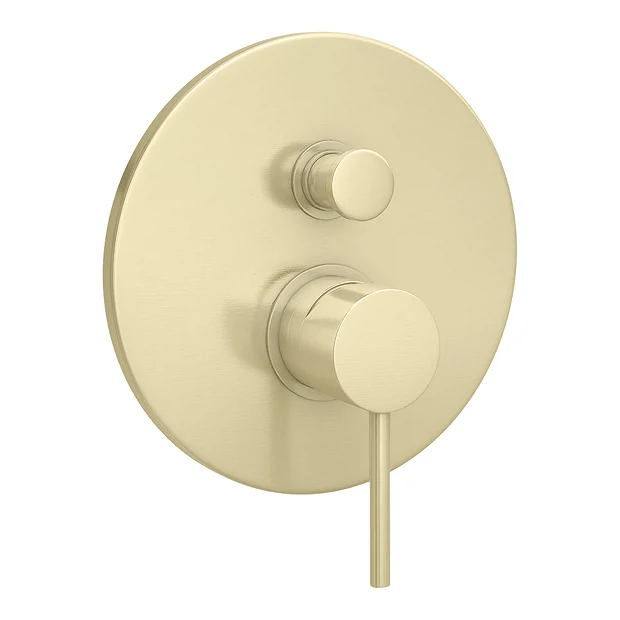

Arezzo Brushed Brass Round Concealed Manual Shower Valve With Diverter

Arezzo Brushed Brass Round Concealed Manual Shower Valve with Diverter


The Arezzo modern brushed brass single lever concealed manual shower valve with diverter, characterised by its stylish round handle which controls temperature and flow. Simply lift lever to introduce flow, adjust left or right to set temperature.

The ideal solution for those updating their shower and bath on a budget, this sleek valve with a high performance diverter doesn’t compromise on style or function. Operate a bath with shower or a showering area with two outlets.

Product Details

• Diameter: 170mm
• Style: Modern
• Single Lever
• Concealed
• Round Back Plate
• Colour/Finish: Brushed Brass
• Material: Durable Brass
• Water Outlets: 2
• Operating pressure 0.5 bar up to 5 bar
• Recessed for streamlined appearance
• Non thermostatic mixer valve

• Ceramic disc control for smooth action and no drips
• Simple lever operation for flow and temperature
• Built-in diverter – Knob allows the user to divert the water between 2 outlets
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Flow Rates

0.5 Bar – 7.7 l/m
1 Bar – 10.6 l/m
2 Bar – 15.1 l/m
3 Bar – 18.6 l/m
4 Bar – 21.6 l/m
5 Bar – 24 l/m

All measurements are approximate

Product images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
