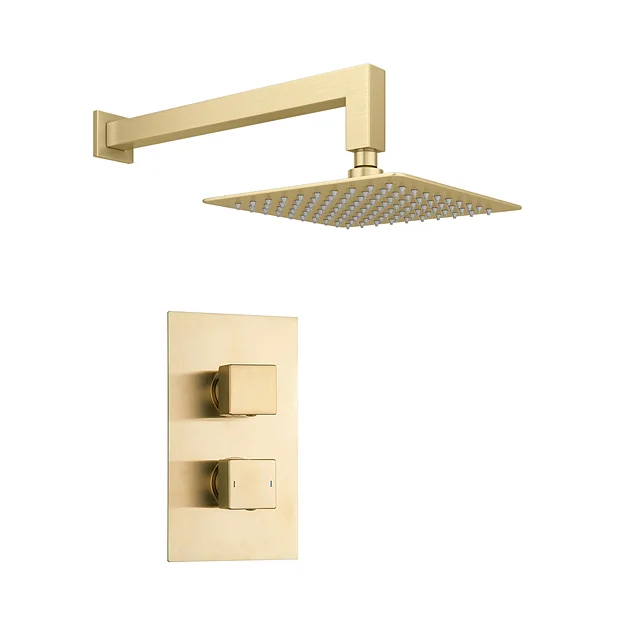

Arezzo Brushed Brass Square Shower Package with Concealed Valve + 200mm Head

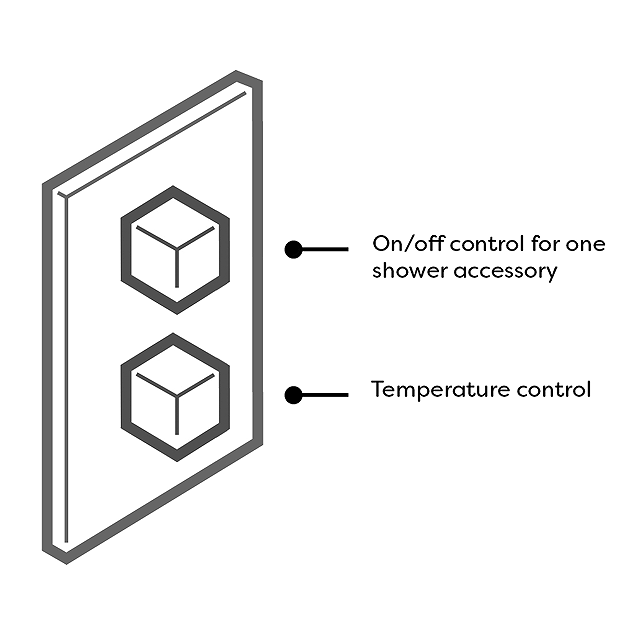

This Arezzo square concealed thermostatic valve features a luxury brushed brass finish with square tap head controls, perfect for creating an eye catching look in your bathroom. Offers thermostatic showering via two easy-to-operate controls for temperature and flow. The valve body comes with a contemporary rectangular backplate and has been constructed from solid brass. Supplied with matching wall mounted 200 x 200mm ultra-thin square fixed rainfall shower head with swivel joint and arm.

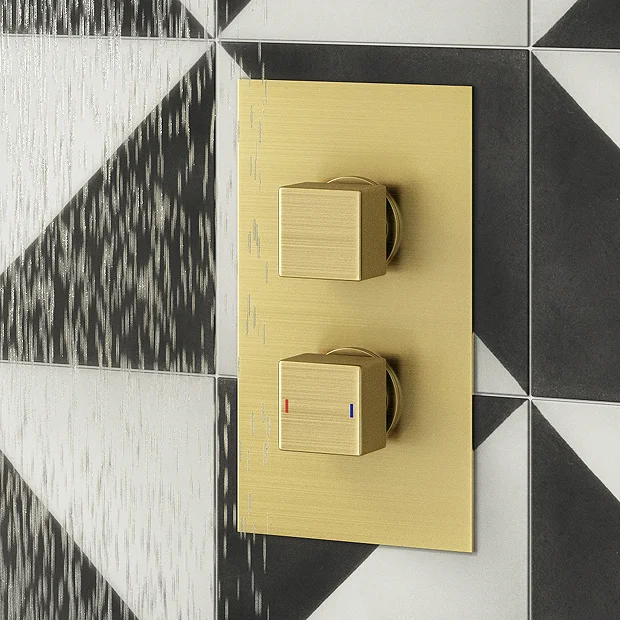

Shower Valve Details
- Height: 215mm
- Width: 120mm
- Style: Modern
- Colour/Finish: Brushed Brass
- Valve Handles: Square

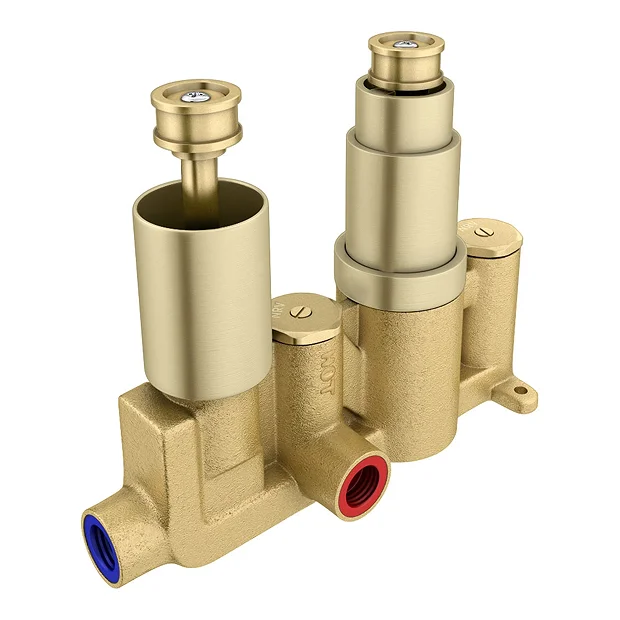

- Brass Internals
- Thermostatically controlled
- Water Pressure: 0.5 bar to 5 bar
- Rectangular Backplate
- For use with 1 Outlet
- Can be fitted vertically or horizontally
- Suitable for modern pressurised plumbing systems.
- Hot water temperature 55 to 85 Degrees
- With gravity fed systems a pump will be required, we recommend a universal or negative head pump
- Flow Rates:
- 0.5 bar – 9.6 L/M
- 1 bar – 14.1 L/M
- 2 bar – 20.5 L/M
- 3 bar – 24.8 L/M
- 4 bar – 28.3 L/M
- 5 bar – 32 L/M

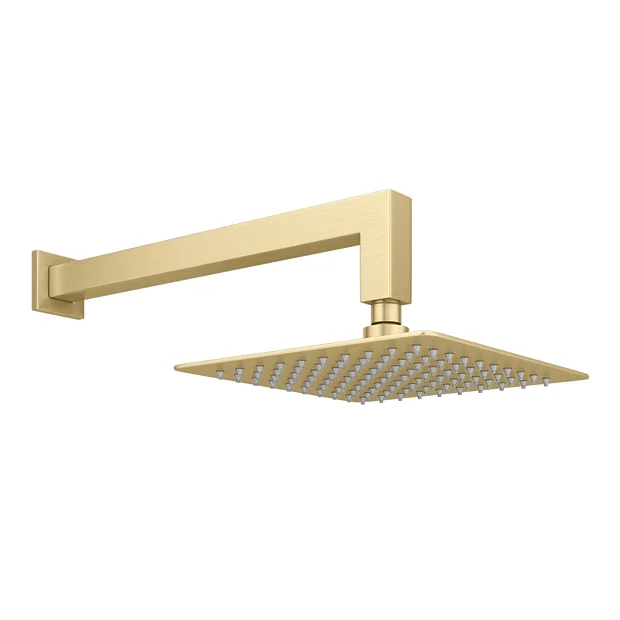

Shower Head + Arm Details
- Shower Head Size: 200 x 200mm
- Shower Arm Length: 388mm
- Style: Modern
- Shape: Square
- Colour/Finish: Brushed Brass
- Material: Brass
- Thickness/Profile: 3mm (excluding swivel joint)
- 90-degree Bend
- Wall Mounted
- Pressure requirements: 0.5 bar minimum
- Inlet Connections: 1/2″ BSP
- Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain
All measurements are approximate
Pictures for illustrative purposes only
Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Comprises
(1) Twin Square Concealed Shower Valve – 1 Outlet
(1) Square Wall Mounted 90 Degree Bend Shower Arm – 388mm
(1) Ultra Thin Square Shower Head (200 x 200mm)
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
