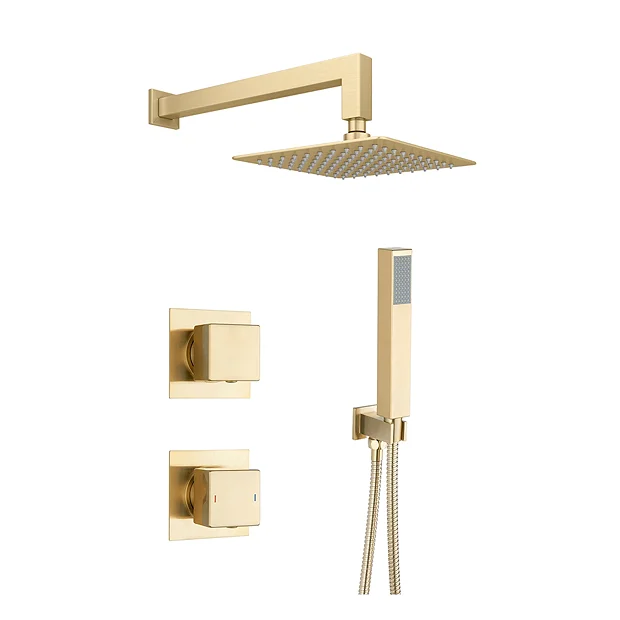

Arezzo Brushed Brass Square Thermostatic Shower Pack With 200mm Head + Handset

Arezzo Brushed Brass Square Thermostatic Shower Pack with 200mm Head + Handset

Bring your bathroom to life with the chic brushed brass finish of the Arezzo Square Thermostatic Shower Pack. This striking minimalist design features a rainfall shower head for wide body coverage and a spa like experience. You can also hide messy pipework in the wall thanks to the concealed shower valve, which allows you to use the fixed head or the handset either separately or simultaneously. Square valves offer smooth operation and the thermostatic function maintains a consistent temperature for peace of mind while you’re washing.

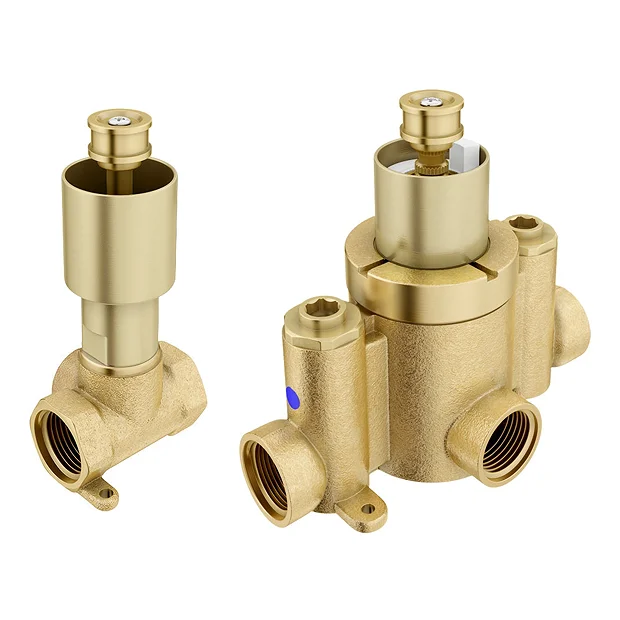

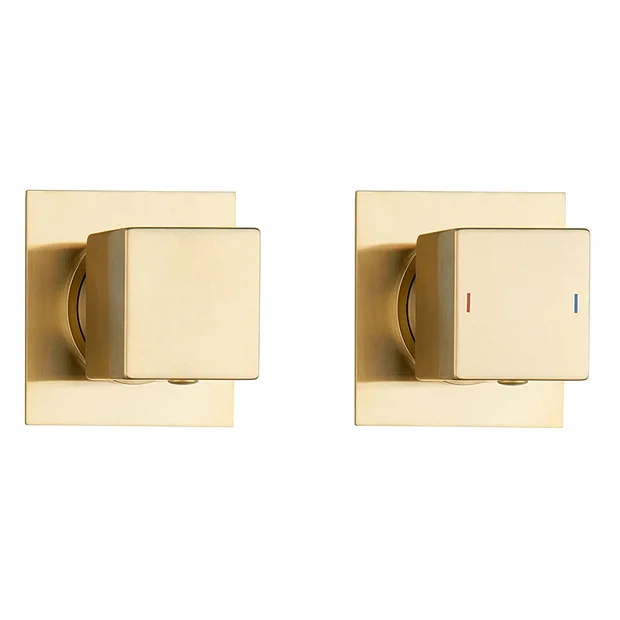

Shower Valves Details

• Diverter Valve: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: W70 x H70mm
• Valve Handles: Square
• Colour/Finish: Brushed Brass
• Material: Brass Internals
• Concealed fitting
• Square backplates
• For use with 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with an individual diverter valve for switching water flow between 2 outlets.
• Shower valves will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

Shower Head with Arm Details

• Shower Head Size: 200 x 200mm
• Shower Arm Length: 388mm
• Style: Modern
• Shape: Square
• Colour/Finish: Brushed Brass
• Material: Brass
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend
• Wall Mounted
• Pressure requirements: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

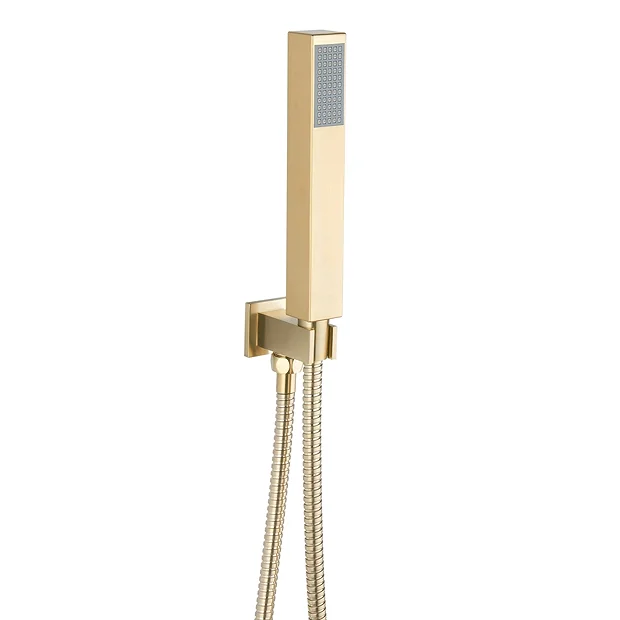

Shower Handset Details

• Depth: 64mm
• Height: 228mm
• Width: 40mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Shape: Square
• Manufactured To The Highest Standards
• Rectangular Handset with Built in Outlet
• Suitable for all plumbing systems
• Eye-catching, brushed brass finish
• Outlet elbow covers unsightly fittings
• Matching 1.5m Shower Hose
• Quality finish
• Handset holder
• Connections: 15 mm (1/2″ BSP)

All measurements are approximate

Pictures for illustrative purposes only

Shower Valve Guarantee 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Arezzo Square Modern Twin Concealed Shower Valve with Diverter
(1) 200mm Ultra Thin Square Head
(1) Square Shower Arm
(1) Square Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
