Arezzo Chrome Industrial Style Shower System With Concealed Valve + Head

Arezzo Chrome Industrial Style Shower System with Concealed Valve + Head

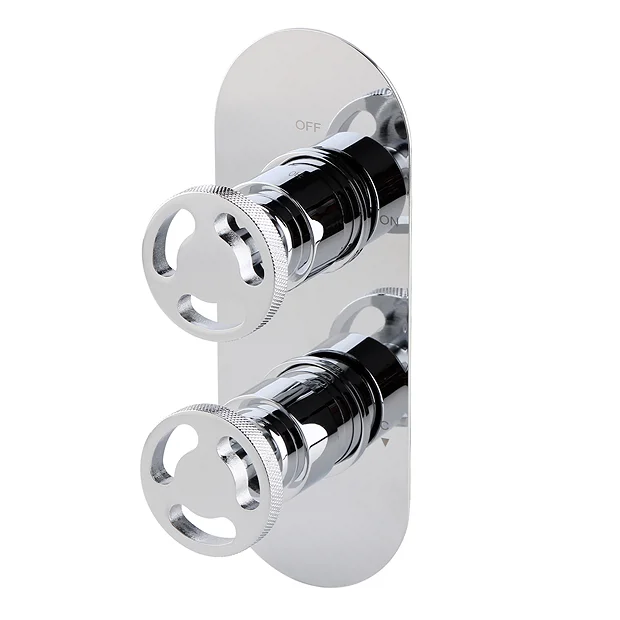

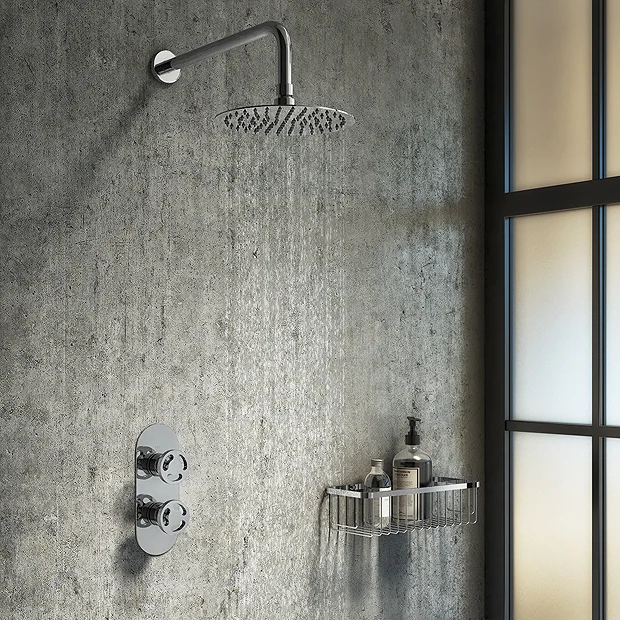

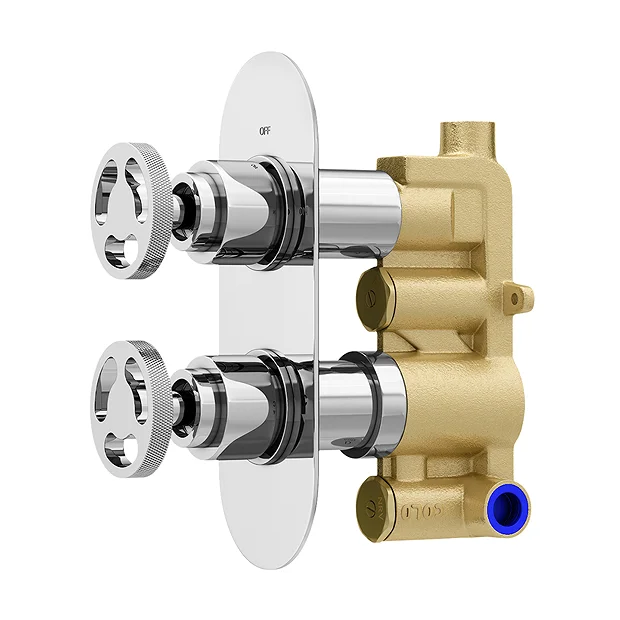

This Arezzo chrome industrial-style round concealed thermostatic valve features a stripped-down aesthetic with round knurled textured tap heads, perfect for creating an eye catching industrial look in your bathroom. Offers thermostatic showering via two easy-to-operate controls for temperature and flow. The valve body comes with a contemporary curved face plate and has been constructed from solid brass. Supplied with matching wall mounted chrome round fixed shower head with swivel joint and arm.

Shower Valve Details

• Height: 215mm
• Width: 80mm
• Style: Modern
• Colour/Finish: Polished Chrome

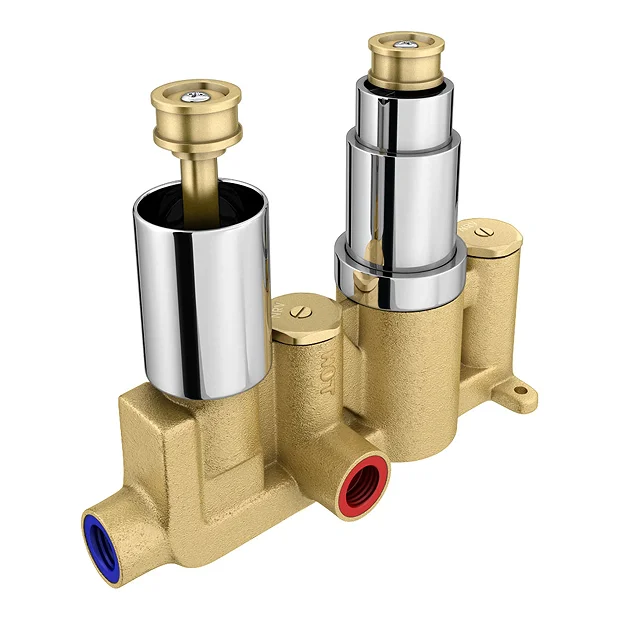

• Material: Solid Brass Internals
• Valve Handles: Round
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Curved Faceplate
• Industrial Style Detailing
• Circular handles with a tactile knurled grips
• For use with 1 Outlet
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 7.5 L/min
• 1 bar – 11.7 L/min
• 2 bar – 16.4 L/min
• 3 bar – 19.8 L/min
• 4 bar – 22.2 L/min
• 5 bar – 24.9 L/min


Shower Head + Arm Details

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: 345mm
• Style: Modern
• Colour/Finish: Polished Chrome
• Rainfall Effect
• Thin Shower Head
• Wall Mounted
• Eye-catching, chrome finish
• Inlet Connections: 1/2″ BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Installation of the arm requires rear access behind the wall.


Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Pictures for illustrative purposes only

Comprises

(1) Twin Round Concealed Shower Valve
(1) 200mm Ultra Thin Round Head
(1) Round Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
