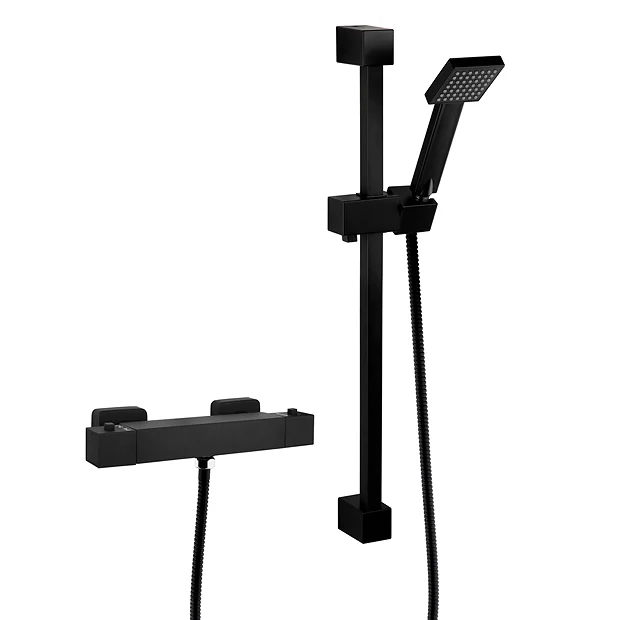

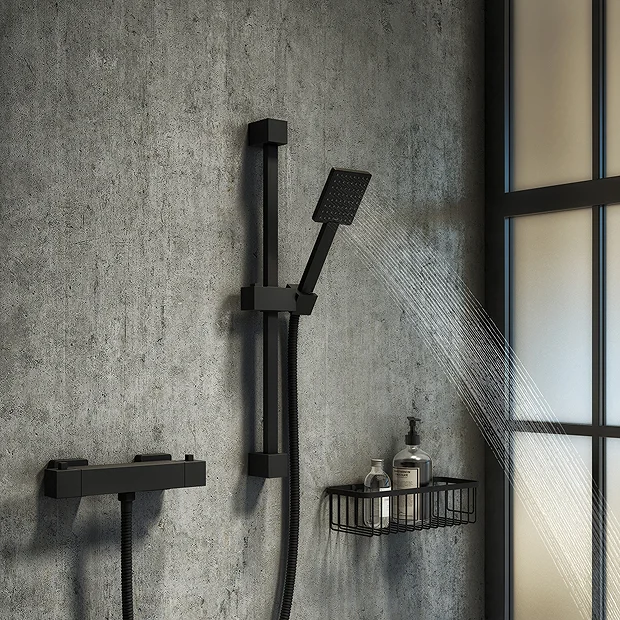

Arezzo Matt Black Square Thermostatic Bar Valve + Slide Rail Kit

Arezzo Matt Black Square Thermostatic Bar Valve + Slide Rail Kit

This stunning matt black Arezzo square bar shower valve with slide rail kit is part of our range of contemporary collection of showers and valves. This modern bar valve features modern square styling with a matt black finish and has been constructed from solid brass.

Features a pre-set maximum temperature that ensures that showering is safe and convenient. Supplied with decorative shrouds/covers to protect and conceal tile/wall edge, giving the installation a neat finished appearance. Supplied with a modern slider rail kit for a clean, and modern shower look.

Bar Valve Details

• Width: 262mm
• Height: 60mm
• Projection: 88mm
• Type: Bar Shower Valve
• Style: Modern
• Shape: Square
• Fitting: Exposed
• Colour/Finish: Matt Black
• Material: Brass Internals
• 1 Bottom Outlet
• Surface / Wall Mounted
• Thermostatic
• Separate controls for temperature and flow
• Easy installation
• Built in anti-scald device
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump

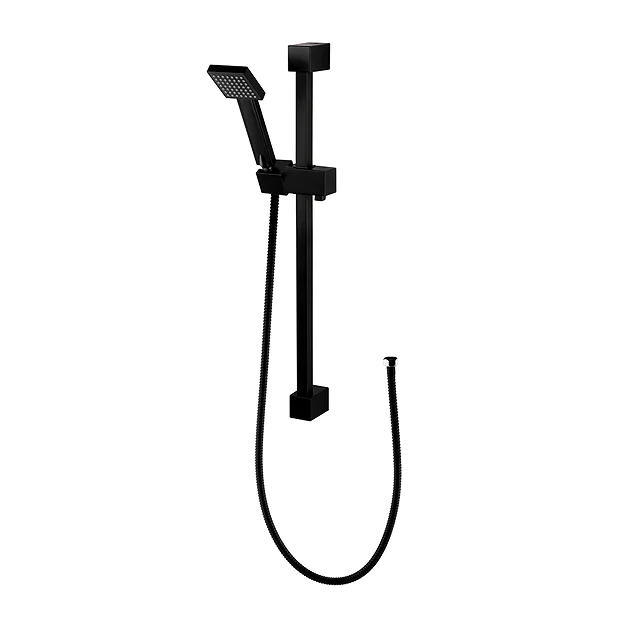

Slide Rail Kit Details

• Height: 660mm
• Shower Handset: 210mm
• Style: Modern Square
• Product Type: Slide Rail Kit
• Colour/Finish: Matt Black
• Wall Mounted
• Recommended Pressure: 0.5 Bar
• Rust resistant black hose
• Easy clean shower head
• 1.5m Shower Hose

Please Note: During installation, please protect the connection parts of the shower with a soft material such as cloth, or use rubber lined grips, before tightening.

All measurements are approximate

Product images are for illustrative purposes only and may differ from the actual product.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Certain parts are plastic, not metal. The only parts that are not plastic are the shower valve, rail and the hose.

Package Contents

(1) Slide Rail Kit
(1) Thermostatic Bar Valve – Bottom Outlet

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
