Arezzo Square Modern Triple Concealed Shower Valve – Matt Black

Arezzo Square Modern Triple Concealed Shower Valve – Matt Black

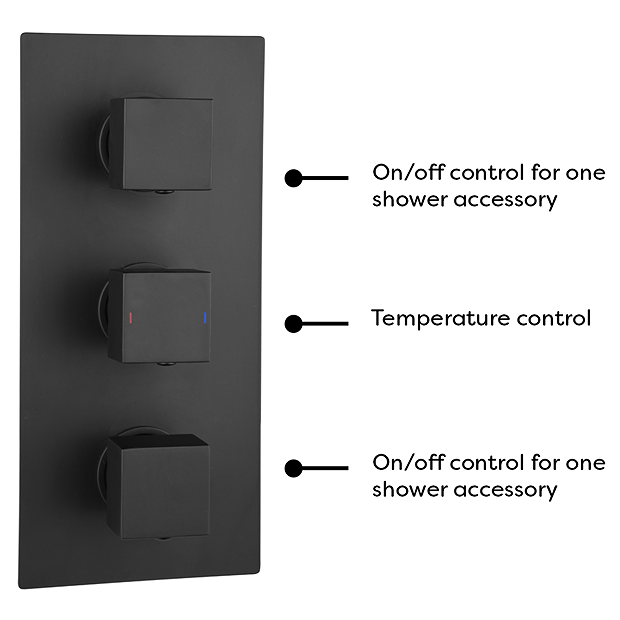

This Arezzo Square Modern Triple Concealed Shower Valve is a striking choice with a futuristic square design. This three outlet shower valve boasts separate controls for temperature and flow, so you can maintain the pressure and heat that suits you best. It can operate two water outlets separately or simultaneously – that means you can mix and match your favourite features, from a fixed shower head, body jets, or a slider rail kit. The solid brass body of this matt black shower valve is durable, easy to clean and can be fitted vertically or horizontally to suit your space.

Product Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Colour/Finish: Matt Black
• Material: Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Outlets: 2
• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar
• Suitable for modern pressurised plumbing systems.

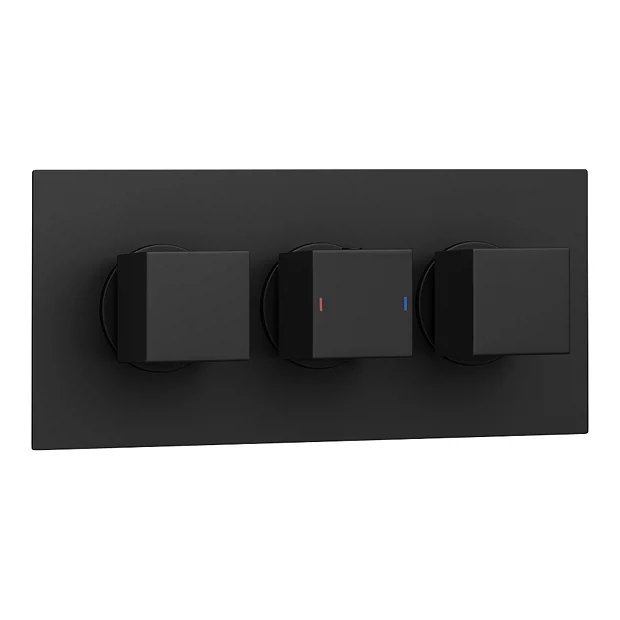

• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Images shown are for illustration purposes only.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Matt Black Triple Square Handles Concealed Shower Valve

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
