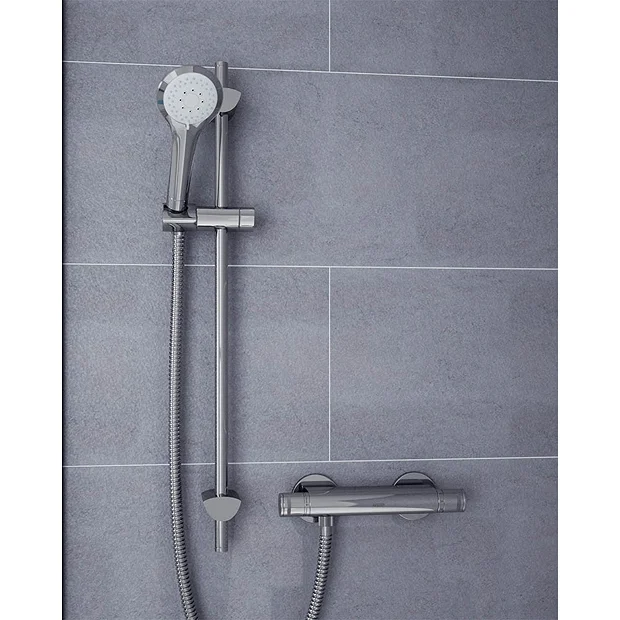

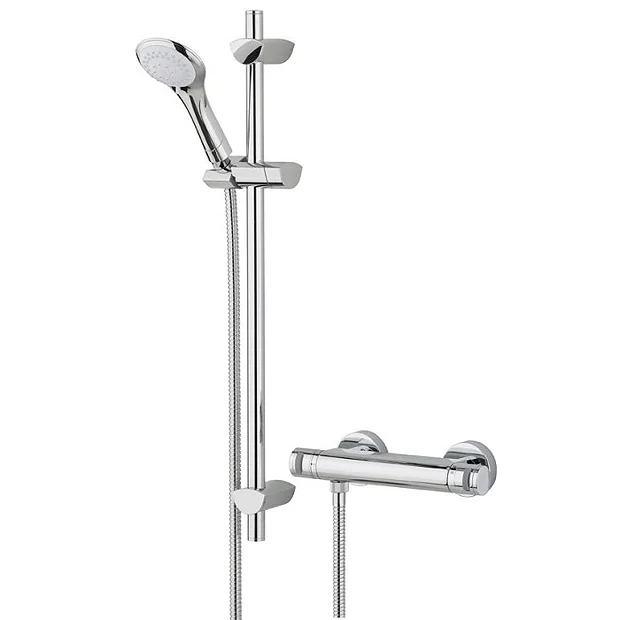

Bristan Artisan Thermostatic Surface Mounted Bar Shower Valve With Adjustable Riser

Bristan Artisan Thermostatic Surface Mounted Bar Shower Valve Inc. Adjustable Riser & Fast Fit Connections

The Bristan Artisan Thermostatic Surface Mounted Bar Shower Valve with Adjustable Riser & Fast Fit Connections, features an automatic shut off in the event of hot or cold water supply line failure, reducing the risk of scalding. This thermostatic shower valve utilises unique fast fit system, and is supplied with 2 x 7 litre per minute flow regulators, one fitted in each inlet to control water flow when fitted to instantaneous water heaters. The shower valve has a dual control where flow and temperature are controlled separately and measures 660 mm high and 117 mm wide.

Features

• Product Code: AR2 SHXMTFF C
• Finish: Chrome
• Product Type: Contemporary
• Construction: Body is of brass construction
• Valve Type: ¼ Turn ½” ceramic disc valve
• Cartridge Type: Thermostatic Cartridge
• Supply: Suitable for all plumbing systems (Preferably balanced)
• Inlet Connections: 15mm compression connections Inlet Connections:
• Outlet Connection: G ½
• Working Pressures: Min 0.1bar, Max 5.0bar. Maximum Static Pressure 10.0bar
• Dimensions for Fitting: 150mm inlet centres

Additional Information

• Dual control – Flow and temperature are controlled separately, giving accurate control of both
• Thermostatic cartridge maintains showering temperature to +/- 1ºC by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature
• Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of any injury
• Factory set to a maximum of 38ºC to eliminate the ability to select an unsafe temperature – this is adjuastable to suit user preference and up to a maximum of 46ºC.
• Utilises unique fast fit system – wall mount WMNT10 C

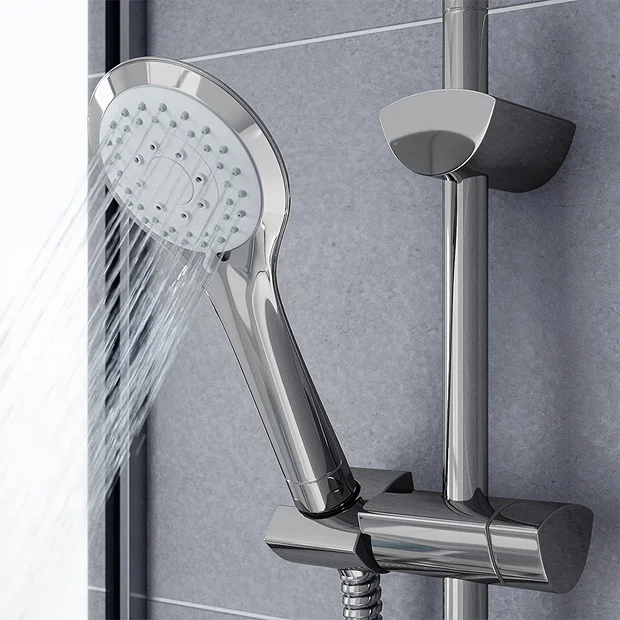

• Supplied with 1.5m hose, riser rail, hose retainer and multi function handset with rub clean nozzles.
• Riser rail brackets can be adjust up and down the rail to cover any existing holes or cover tile joints.
• Chrome plated to BS EN 248
• Product supplied with 2 x 7 litre per minute flow regulators, one fitted in each inlet to control water flow when fitted to instantaneous water heaters (combination boilers). These can be removed to suit different water delivery systems, i.e. low pressure gravity fed systems. (Flow Regulators accurate to +/- 10%).
• WRAS and TMV2 approved

Guarantee: 5 years covering manufacturing faults
