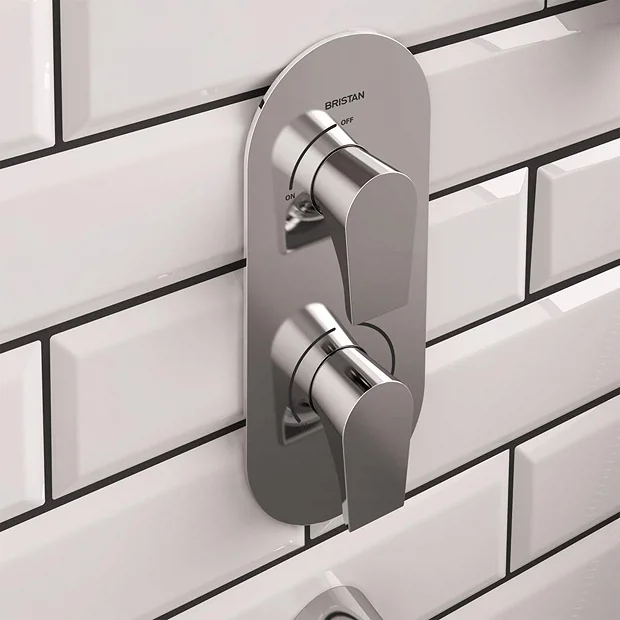

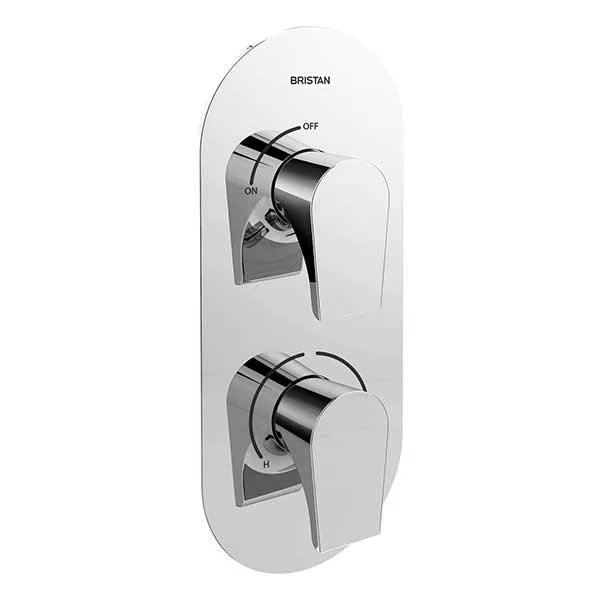

Bristan Hourglass Recessed Thermostatic Dual Control Shower Valve

Bristan Hourglass Recessed Thermostatic Dual Control Shower Valve – HOU-SHCVO-C

The Hourglass shower valve range from Bristan features a stylish lever design and a slimline faceplate. The Hourglass thermostatic recessed dual control shower valve is suitable for all plumbing systems, requiring an operating pressure between 0.2 bar and 5.0 bar and comes with dual controls that regulate the temperature and flow separately.

Product Details

• Product Code: HOU SHCVO C
• Finish: Chrome
• Product Type: Contemporary
• Construction: Body is of brass construction
• Supply: Suitable for all plumbing conditions, preferably balanced. The inlet hot water temperature must be at least 10% above the required blend temperature.
• Inlet Connections: 15mm Compression connections
• Working Pressures: Min 0.2 Bar, Max 5.0 Bar
• Chrome plated to BS EN 248
• Minimum wall cavity depth of 35mm
• Minimum cold water supply temperature is 5°c
• Maximum hot water supply temperature is 80°c
• Flow rates at 0.2 Bar (open outlet without flow regulators) 9.0 l/min
• Requires rear access to service the filters
• Cartridge can be accessed from the front
• WRAS approved

Guarantee – 5 years covering manufacturing faults
