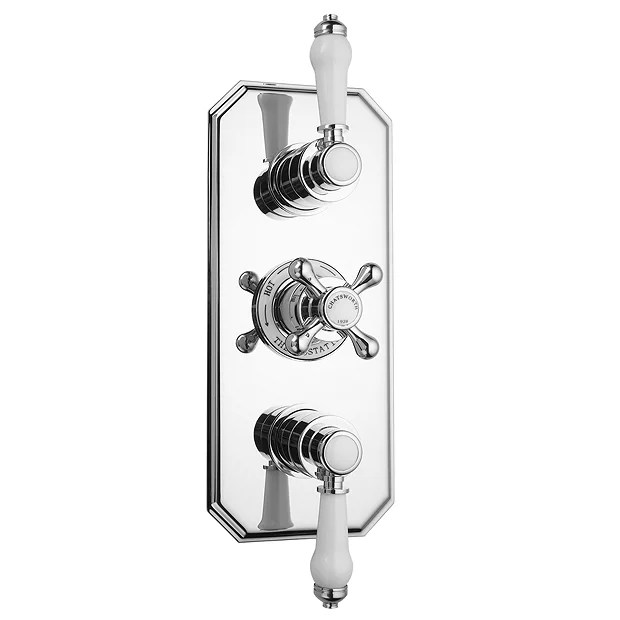

Chatsworth 1928 Traditional Triple Concealed Thermostatic Shower Valve

Chatsworth 1928 Traditional Triple Concealed Thermostatic Shower Valve – Chrome

The Chatsworth 1928  triple concealed thermostatic shower valve with stylish ceramic control dial brings substantial elegance to the modern bathroom. This concealed triple shower valve offers thermostatic showering via three easy-to-operate controls. Operates two outlets separately or simultaneously e.g. Fixed head / Slide rail kit, Fixed head / Body jets or Slide rail kit / Body jets. Manufactured using high quality chrome and brass, our range of traditional shower valves will look outstanding in any shower enclosure.

Product Details

• Height: 280mm
• Width: 130mm
• Type: Triple Concealed Valve
• Range: Chatsworth 1928
• Style: Traditional
• Colour/Finish: White/Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar
• Wall mounted
• Thermostatically controlled

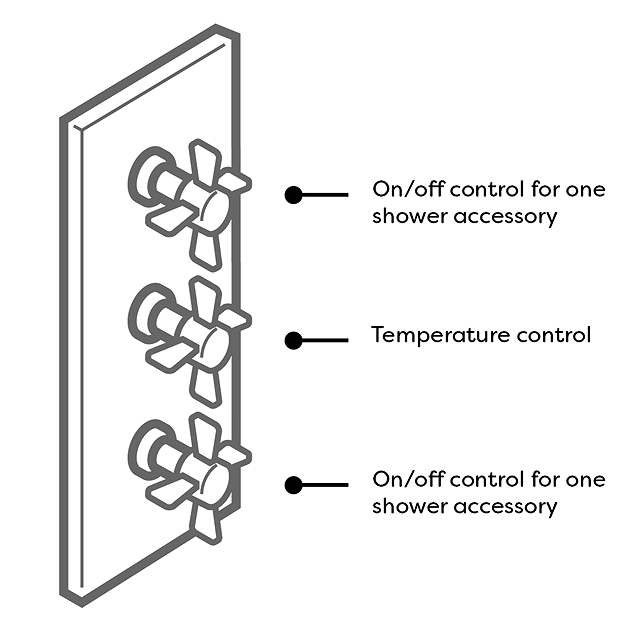

• Classic face plate, lever and cross head handles
• Separate controls for temperature and flow.
• Operates two outlets separately or simultaneously – 2 Outlets
• Suitable for modern pressurised plumbing systems.
• Can be fitted vertically or horizontally.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
