Chatsworth Traditional Crosshead Shower Bar Valve + Slider Rail Kit

Chatsworth Traditional Crosshead Shower Bar Valve + Slider Rail Kit

The Chatsworth Traditional Crosshead Shower Bar Valve is a safety conscious option for your bathroom. Featuring the latest anti scald technology, the thermostatic bar shower valve is preset to an optimal 38°C, which you can easily adjust to your preference via the safety button on the handle. As well as temperature control, the crosshead tap head offers pressure control so you can set the flow as desired. The slider rail kit allows for easy adjustment to the perfect height too. This shower’s classic styling and gleaming chrome finish will blend seamlessly with an array of interior styles.

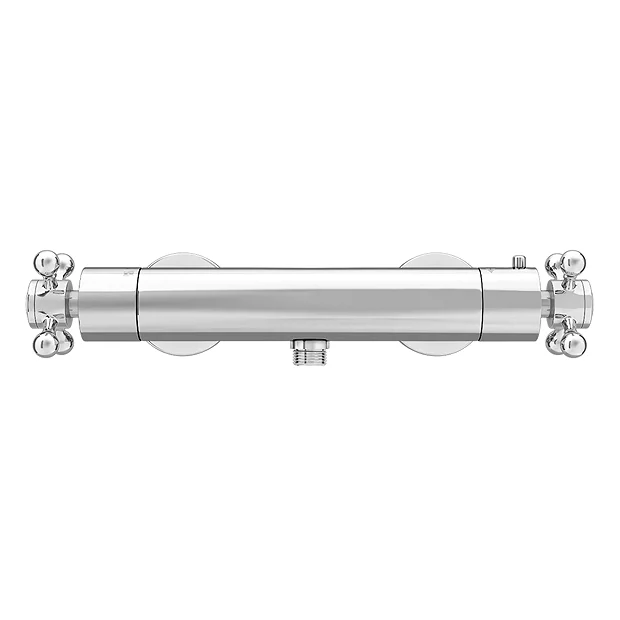

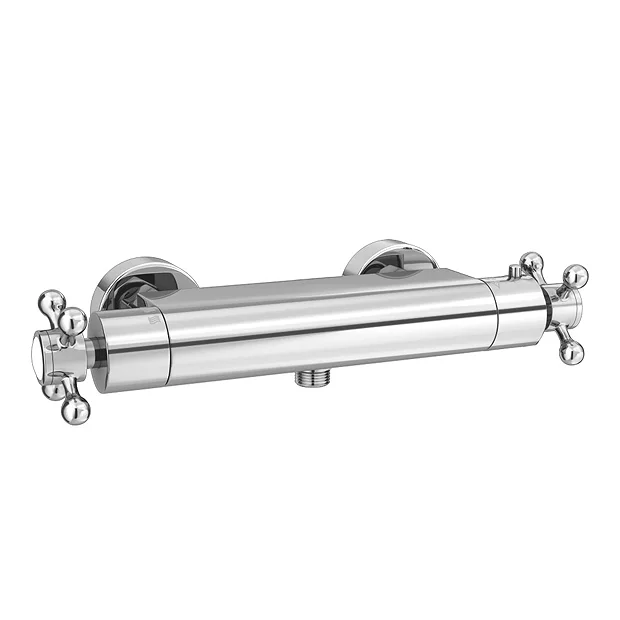

Shower Valve Details

• Width: 304mm
• Depth: 100mm
• Height: 40mm
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Style: Traditional
• Type: Bar Valve
• Handles: Cross-head
• Ceramic White Indices
• Surface / Wall Mounted
• Bottom Outlet
• Thermostatic shower control valve for comfort and safety
• Built-in anti-scald device

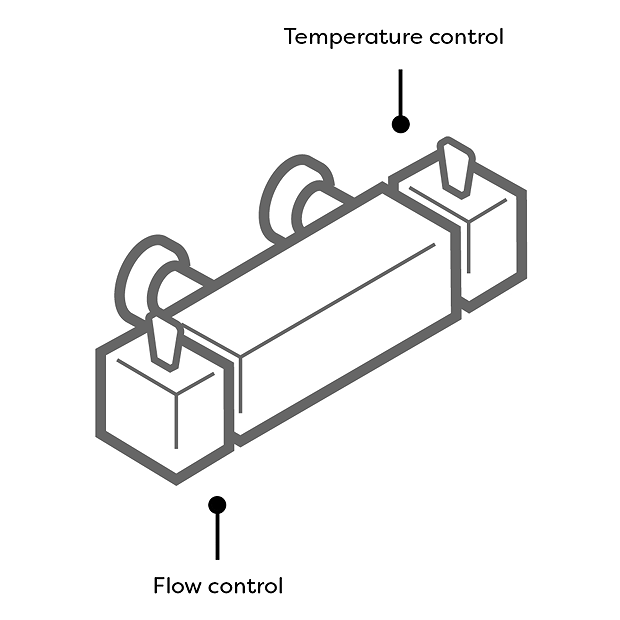

• Separate controls for temperature and flow
• Easy installation
• Factory pre-set temperature 38°
• Durable and dependable
• 150mm between pipe inlet centres
• Water Pressure: 0.5 bar to 5 bar
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump

Shower Slide Rail Kit Details

• Height: 690mm
• Traditional Design
• Colour/Finish: Polished Chrome with White ceramic detailing
• Material: Brass Internals
• Slide Rail Kit & Shower
• Rainfall Shower
• Low pressure
• Adjustable Handset Position
• 1.5m hose
• Minimum 0.1 bar pressure required for best performance
• Manufactured to the Highest Standards

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

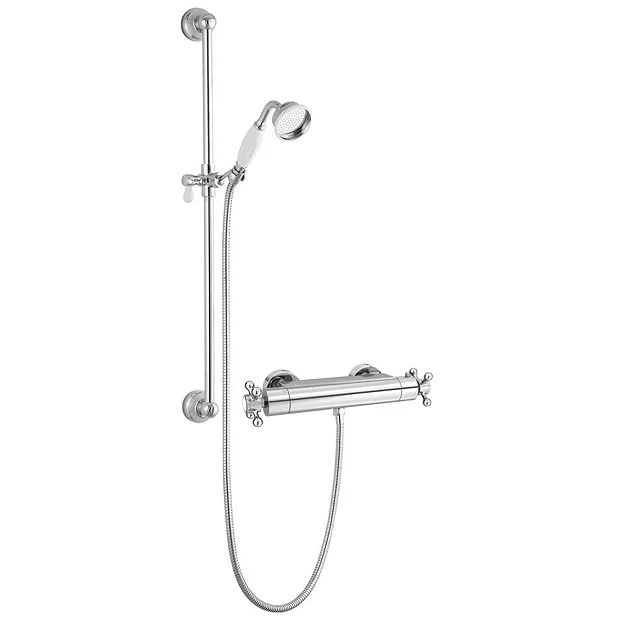

Comprises

(1) Traditional Shower Slide Rail Kit – Chrome
(1) Chatsworth Traditional Crosshead Bottom Outlet Thermostatic Bar Shower Valve

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
