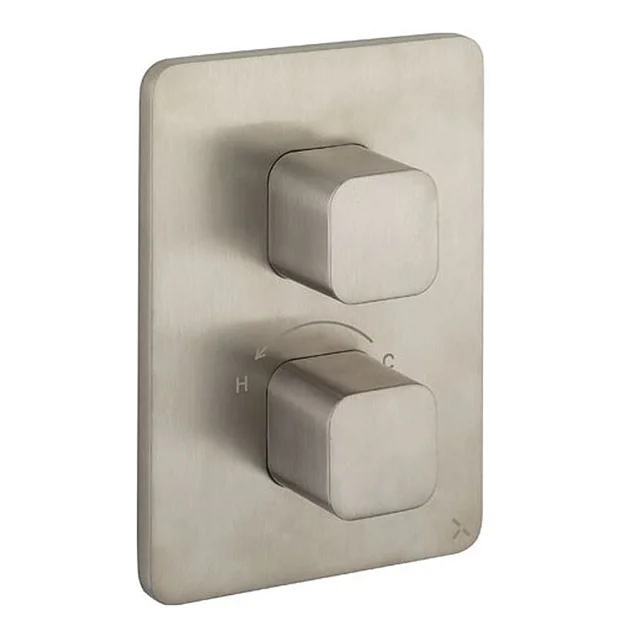

Crosswater Atoll/Glide II/Marvel Crossbox 1 Outlet Trim & Levers – Brushed Stainless Steel

Crosswater Atoll/Glide II & Marvel Crossbox 1 Outlet Valve – Brushed Stainless Steel – ATCB1000LBPV

One outlet CROSSBOX Showers deliver water from a single source i.e. Fixed Head. If you want a quicker and easier way to install a shower valve that projects less, choose CROSSBOX. Trim sets include flow control, thermostat, backplate and handles.

**CROSSBOX ROUGH-IN BOX REQUIRED FOR INSTALLATION (NOT INCLUDED)

Product Details

• Product Type: Thermostatic shower valve
• Range: Marvel Crossbox 1
• Brand: Crosswater
• Colour: Brushed Stainless Steel Effect
• Product Code: ATCB1000LBPV
• Type: Marvel Crossbox 1000 Valve
• Recessed
• Water Pressure: HP1
• Pressure range min/max 0.5/5 bar (in case of water pressure higher than 5 bar we recommend installing pressure reducers).
• Recommended pressure 3 bar
• Mount Type: Wall Mounted
• Super slim 60mm minimum installation depths requires reduced solid wall preparation for quicker installation time
• Front or rear mounting options increase ease installation and flexibility
• Simple 2 stage fixing allows installation of in-wall components and final trim separately reducing possible on site damage
• ‘Flush-block’ testing plate included for easy pressure testing
• Easy fix 2nd stage trim sets reduce installation times
• Built in, ‘Easy-switch’ thermostatic module allows for simple, quick flow reversal if feeds are plumbed in the wrong way round
• Improved flow dynamics allow 90-degree elbows to be fitted directly to outlets to create a more compact piping footprint

Please note: This trim must be installed in combination with the Crossbox Universal Rough-In Box – CROSSBOX

All measurements are approximate

Images for illustrative purposes only

15 Year Guarantee
