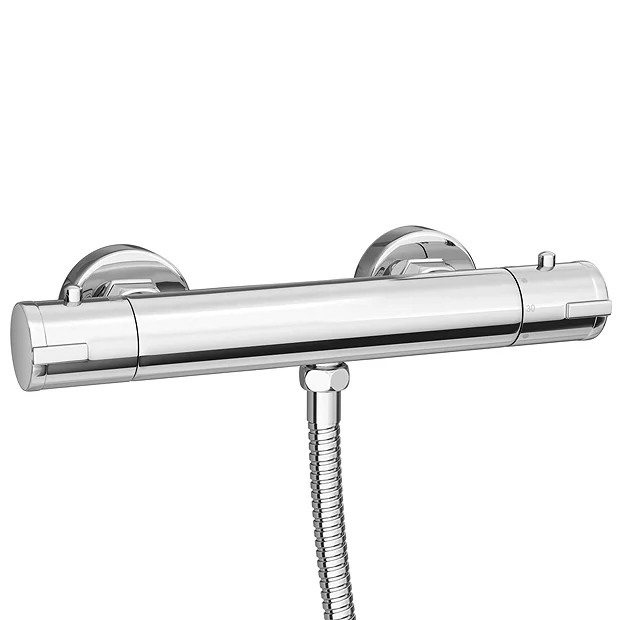

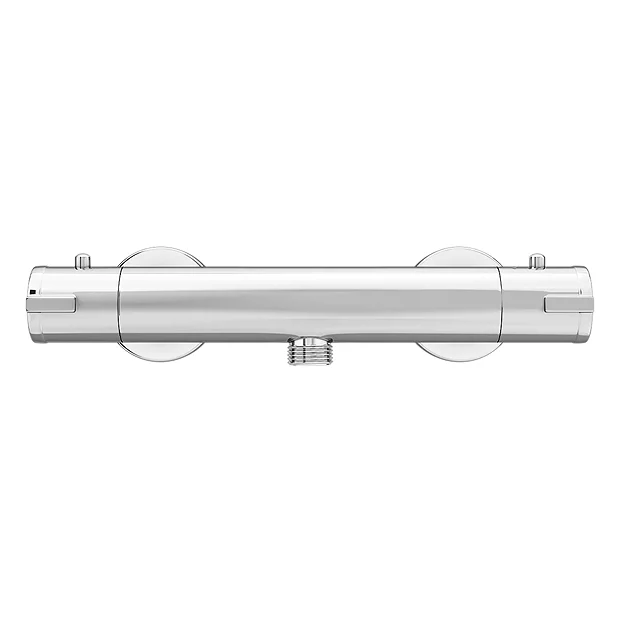

Cruze Round Bottom Outlet Thermostatic Bar Shower Valve
This sleek Thermostatic Bar Shower Valve from Cruze features two simple to use controls – one for flow and one for temperature. Thanks to its clever anti-scald technology, you can rest assured the water will never exceed an optimal 38°C. The shower mixer bar is constructed from solid brass with a chrome finish. Why not tie this modern look together with some understated curved bath taps?
Product Details
- Width: 270mm
- Depth: 79mm
- Height: 40mm
- Style: Modern
- Range: Bar Showers
- Handles: Round
- Colour/Finish: Polished Chrome
- Material: Solid Brass Internals
- Bottom Outlet
- Thermostatically controlled
- Built-in anti-scald device

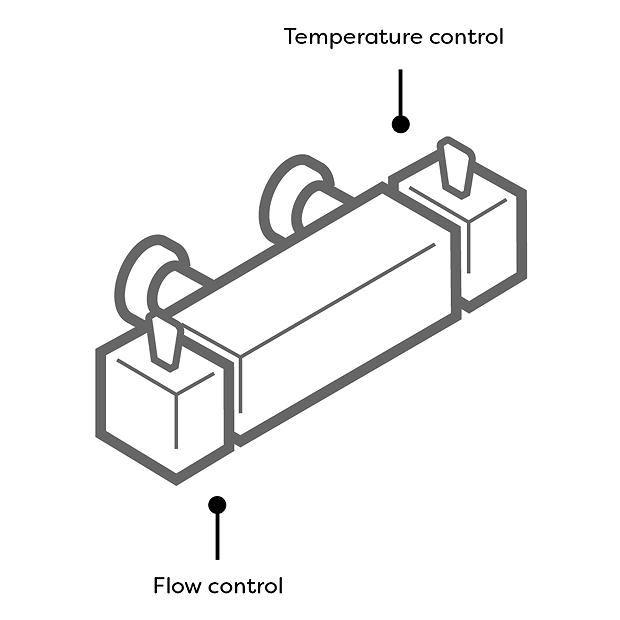

- Separate controls for temperature and flow
- Easy installation
- Factory pre-set temperature 38°
- Recommended Water Pressure: 0.5 bar to 5 bar
- 150mm between pipe inlet centres
- Outlet: 15 mm (1/2″ BSP)
- Hot water temperature 55 to 85 Degrees
- With gravity fed systems a pump will be required, we recommend a universal or negative head pump
- Flow Rates:
- 0.5 bar – 8.2 L/M
- 1 bar – 12.3 L/M
- 2 bar – 17.9 L/M
- 3 bar – 22.1 L/M
- 4 bar – 25.6 L/M
- 5 bar – 28.6 L/M
All measurements are approximate
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Product images for illustration purposes only
Does not include shower hose.
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
