Cruze Round Triple Thermostatic Valve with Round Shower Head + Handset

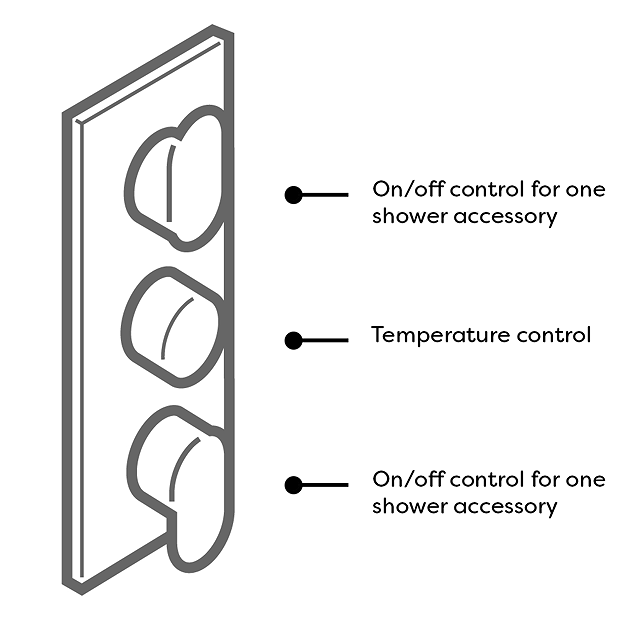

Updating your shower? Choose this minimalist Cruze Round Triple Thermostatic Valve to bring a contemporary twist to your bathroom or en suite. Three easy to operate levers allow you to adjust flow and temperature, as well as divert water between the round rainfall shower head and matching handset. A built in anti scald device protects against the cold water supply cutting out. Cleaning this thermostatic shower valve is easy too – simply banish germs and limescale with a quick wipe of the gleaming chrome finish.

Shower Valve Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals

• Thermostatically controlled
• Valve Handles: Round

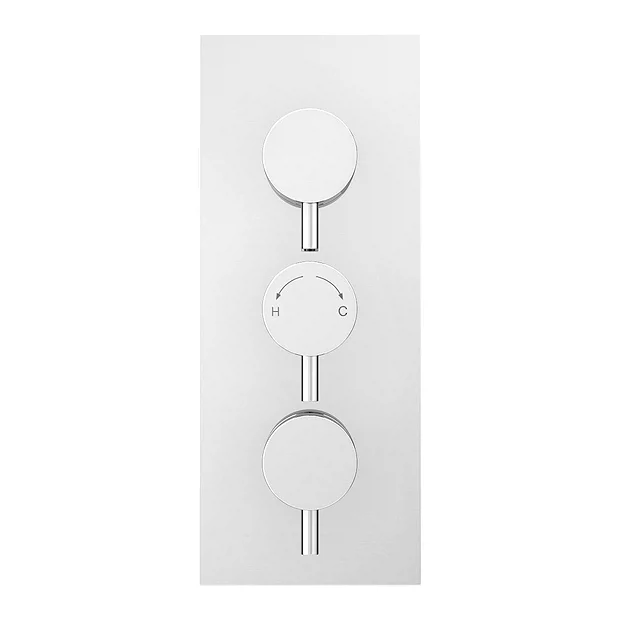

• Rectangular Faceplate
• Style: Modern
• Operates two points
• Water Pressure – 0.5 bar min to 3 bar max

• Suitable for modern pressurised plumbing systems.

• Can be fitted vertically or horizontally

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump.

• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M


Shower Head Details

• Shower head dimensions: 200mm diameter
• Shower arm length: 345mm
• Style: Modern
• Colour/Finish: Chrome
• Water Pressure: 0.5 bar min to 3 bar max

• Supplied with swivel joint and wall mounted round arm.
• Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.


Handset Details

• Product Type: Round Outlet Elbow with Parking Bracket, Flex & Handset
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex: Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Handset: ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away

Product images are for illustration purposes only

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

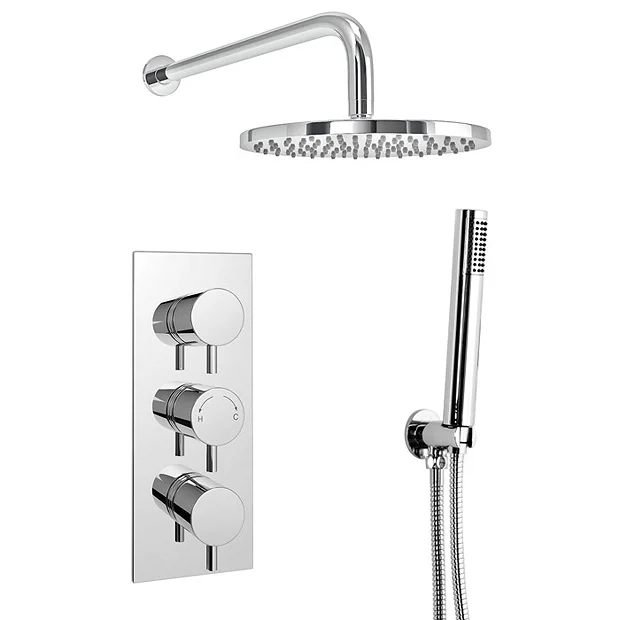

Comprises

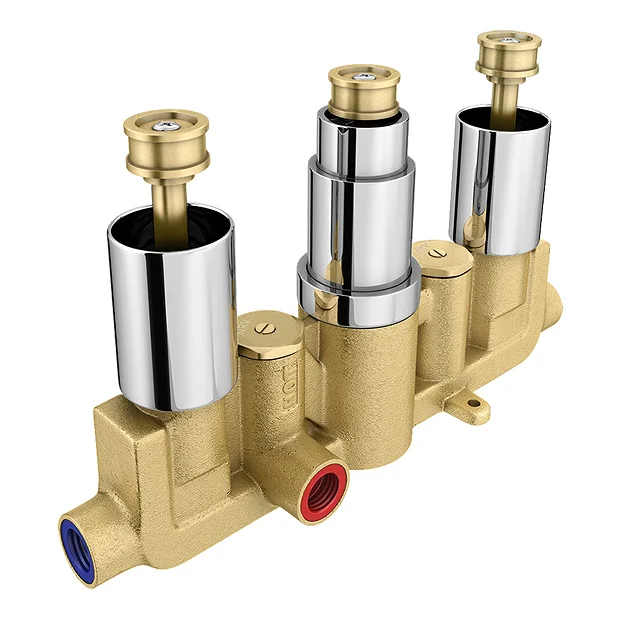

(1) Cruze Triple Round Concealed Thermostatic Shower Valve – Chrome
(1) Cruze 200mm Fixed Round Shower Head with Wall Mounted Arm
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
