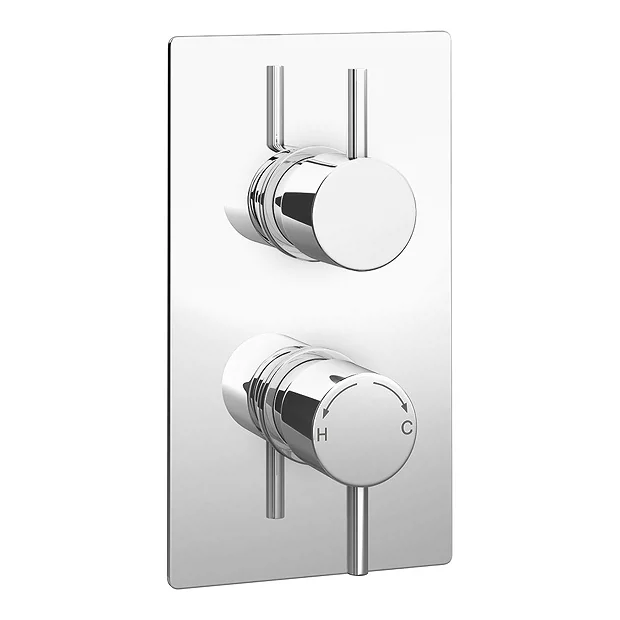

Cruze Bathroom Cruze Twin Round Concealed Shower Valve – Chrome

For a neat, minimalistic feel in your bathroom, consider a modern Concealed Valve Shower Mixer from Cruze. The valve itself is hidden in the wall, leaving only the tasteful chrome control plate on view, which can be installed vertically or horizontally. It features separate water and temperature controls so you can fine tune your experience. Why not complete the look with a contemporary Cruze shower head?

Product Details

• Height: 215mm
• Width: 120mm
• Depth: 140mm

• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round

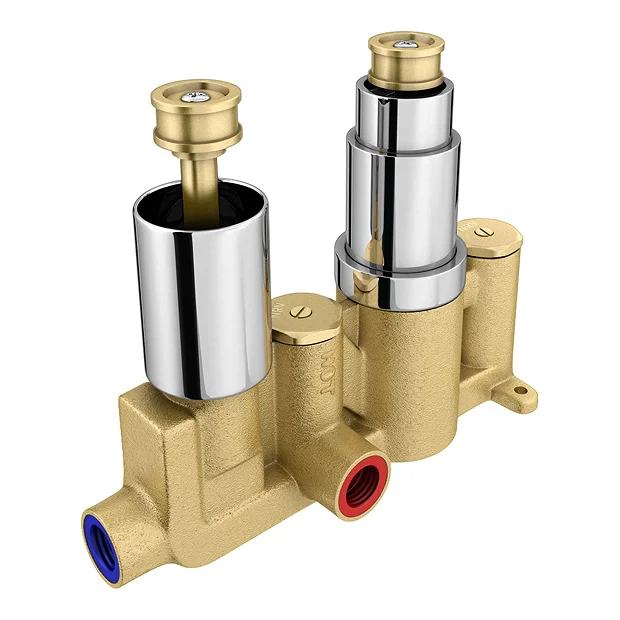

• Material: Brass Internals

• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar

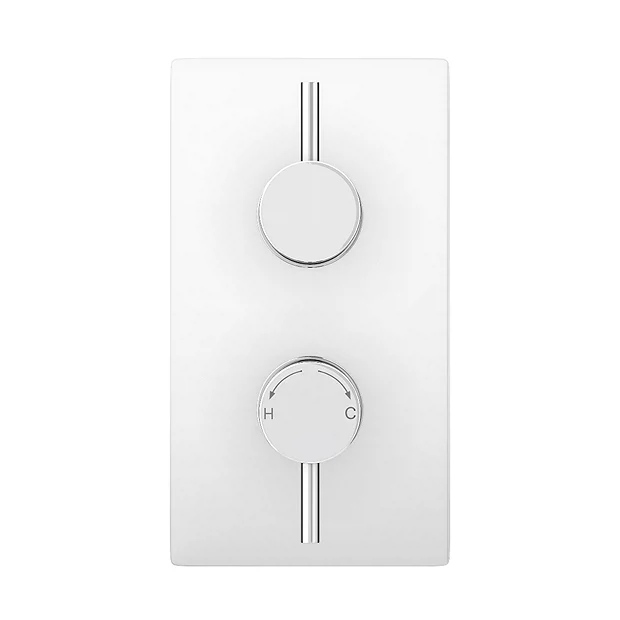

• Rectangular Faceplate
• For use with 1 Outlet

• Can be fitted vertically or horizontally
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M


Pictures for illustrative purposes only.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Twin Round Concealed Shower Valve

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
