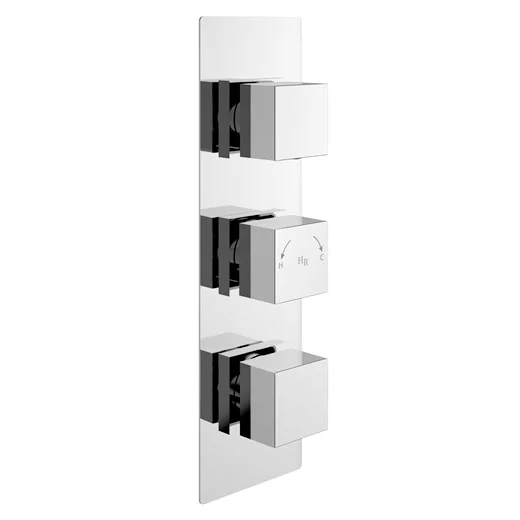

Hudson Reed Square Triple Concealed Thermostatic Shower Valve

Hudson Reed Square Triple Concealed Thermostatic Shower Valve – SQRTR02

The Hudson Reed Square Triple Concealed Thermostatic Shower Valve offers thermostatic showering via easy-to-operate controls. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Its reversible cartridges mean if the hot and cold supplies are the wrong way round it doesn’t need re-plumbing.

Operates two shower accessories separately or simultaneously: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets.

Product Details

• Height: 280mm
• Width: 80mm
• Depth: 136mm
• Brand: Hudson Reed
• Colour: Polished Chrome
• Material: Brass / ABS
• Two Outlet
• Valve Handle: Square Handle
• High quality internal brassware for long life
• Patented Valquest cartridge making for easy installation and maintenance
• Accurate flow control
• Full thermostatic protection to prevent scalding in the event of hot or cold water shut off
• Excellent flow rates – even at low pressure
• Accurate flow control
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• The patented cartridge is highly resistant to calcium build up – even in hard water areas
• Pipe Size: 15 mm & 22 mm
• Approvals: WRAS, TMV2, TMV3
• Operating Pressure: 0.1 bar

Guarantee: 20 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 14 l/m
1.0 Bar – 20 l/m
2.0 Bar – 29 l/m
3.0 Bar – 44 l/m
