Milan Bathroom Milan Concealed Individual Stop Tap + Thermostatic Control Shower Valve

Milan Concealed Individual Stop Tap + Thermostatic Control Shower Valve (for 1 Outlet)

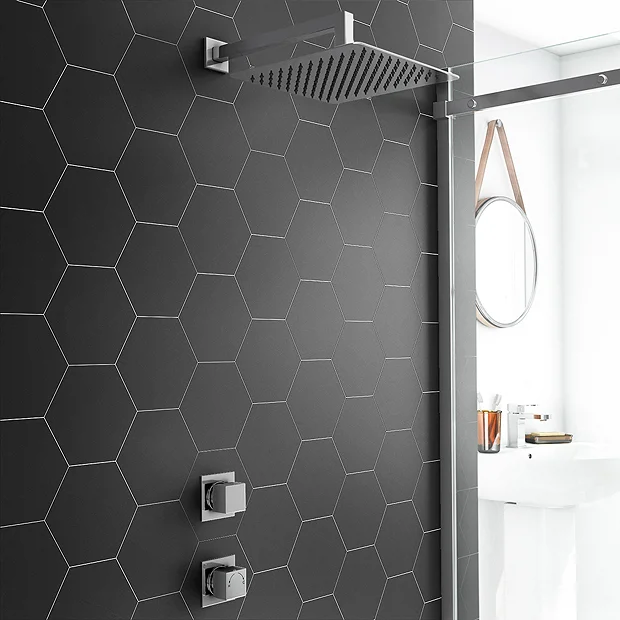

The Milan Concealed Individual Stop Tap and Thermostatic Control Shower Valve Pack features a striking modern square design. This shower valve pack is perfect for installing in a concealed arrangement, linked to a fixed shower head.

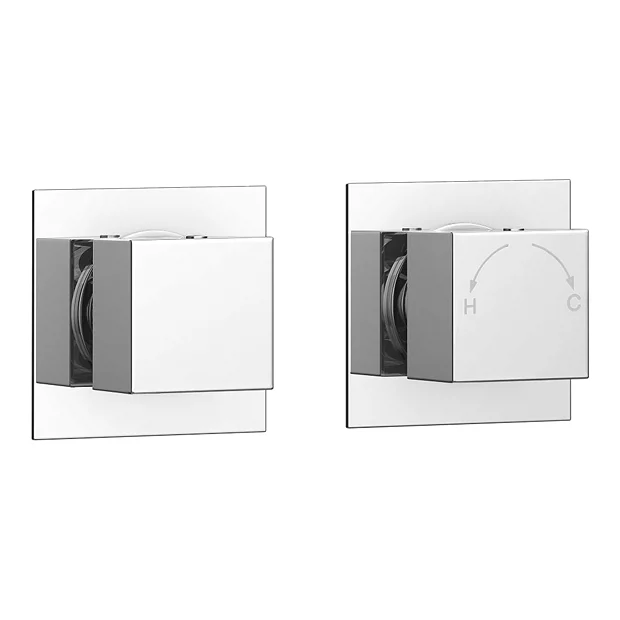

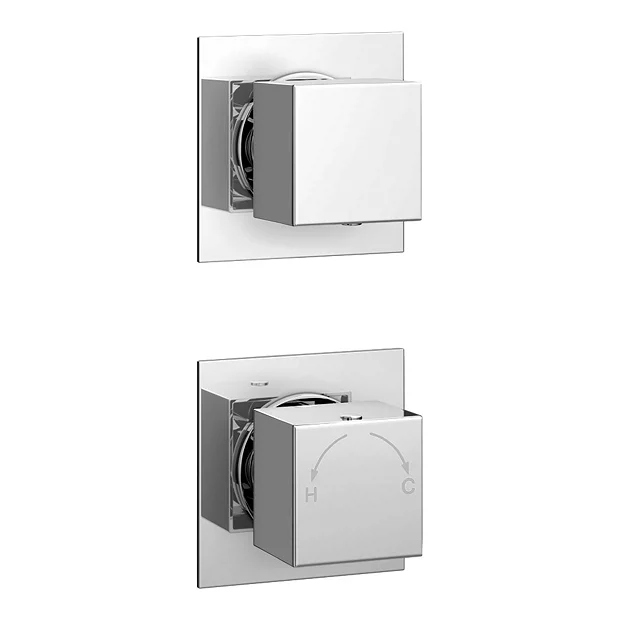

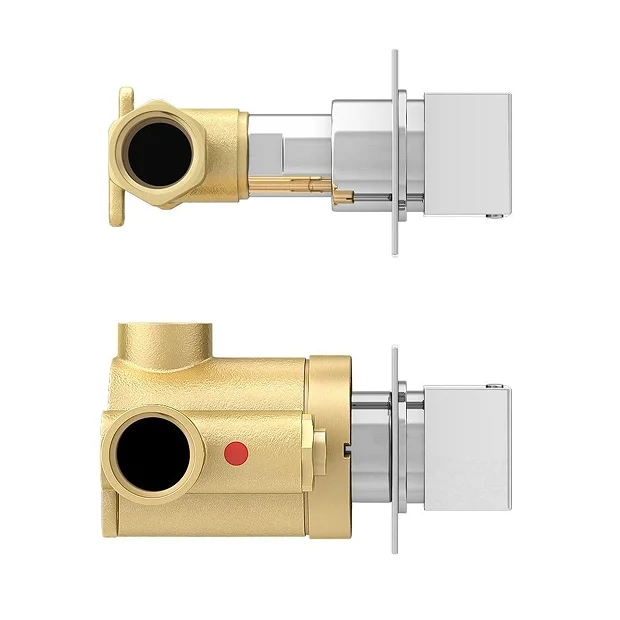

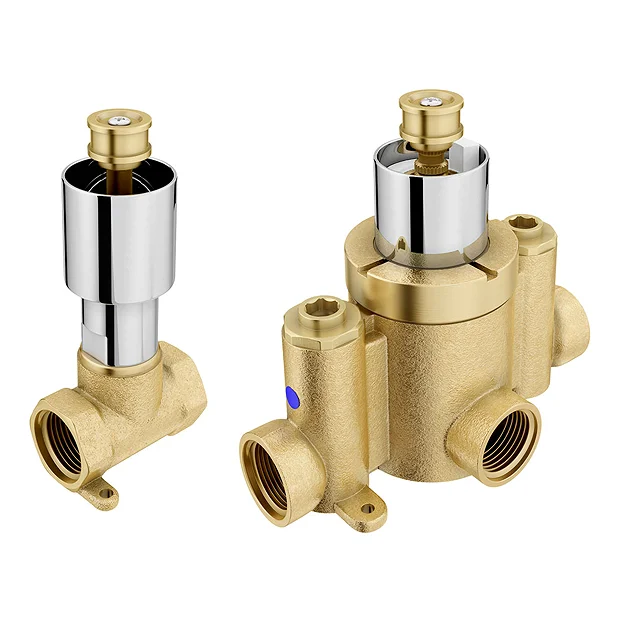

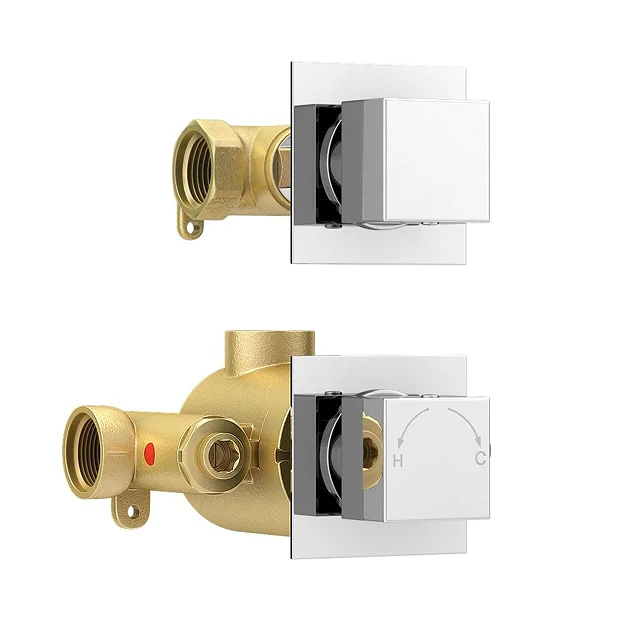

The Milan concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies come with contemporary chrome plated square backplates and handles. This concealed valve has been designed to be paired with one outlet, i.e. a main shower head.

Product Details

• Stop Tap: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: W70 x H70mm
• Style: Modern
• Range: Milan
• Valve Handles: Square
• Colour/Finish: Chrome Plated
• Material: Brass Internals
• Concealed fitting
• Square backplates
• For use with 1 Outlet
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual stop tap for flow control.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.


For further information refer to products installation instructions

Comprises

(1) Individual Stop Tap with Square Backplate
(1) Thermostatic Valve with Square Backplate

Gravity Fed Systems:
