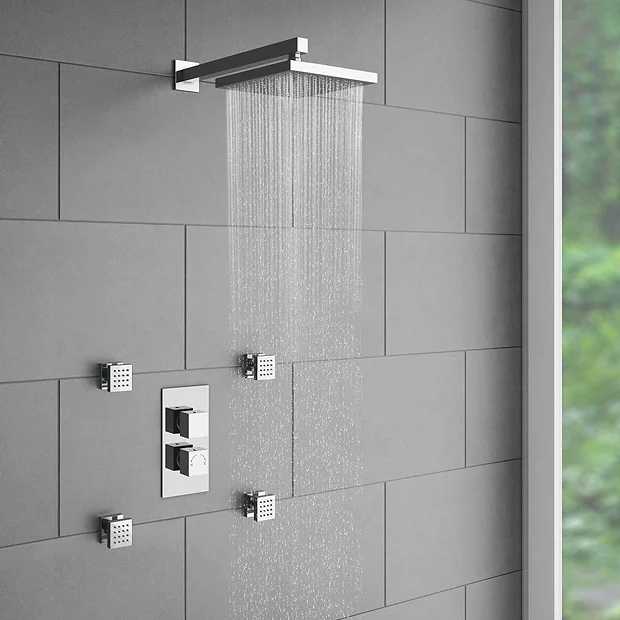

Milan Bathroom Milan Concealed Thermostatic Valve With Diverter, Fixed Shower Head + 4 Body Jets

Milan Concealed Thermostatic Valve with Diverter, Fixed Shower Head + 4 Body Jets

The stylish Milan shower package, includes a concealed thermostatic shower valve with diverter, square fixed shower head & 4 slim body jets. This shower pack will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. This shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Diverts between two shower accessories: fixed head/body jets.

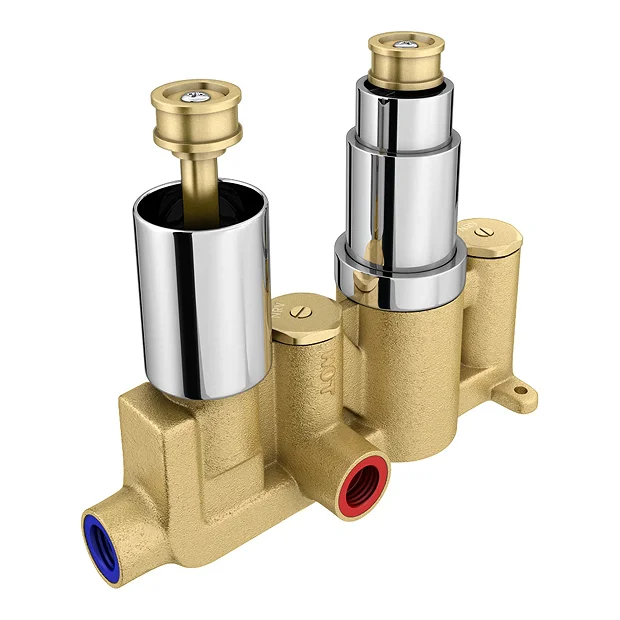

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• Can be fitted vertically or horizontally
• Built-In Diverter

• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

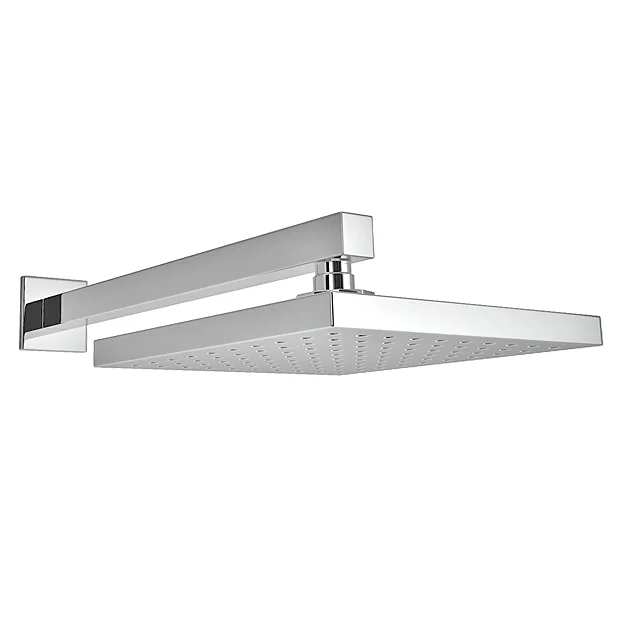

Shower Head Details

• Shower head dimensions: 200 x 200mm
• Shower arm length: 354mm
• Style: Modern
• Colour/Finish: Chrome
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted square arm.
• Please note: Shower head chrome plated plastic, not metal.
• Installation of the arm requires rear access behind the wall.

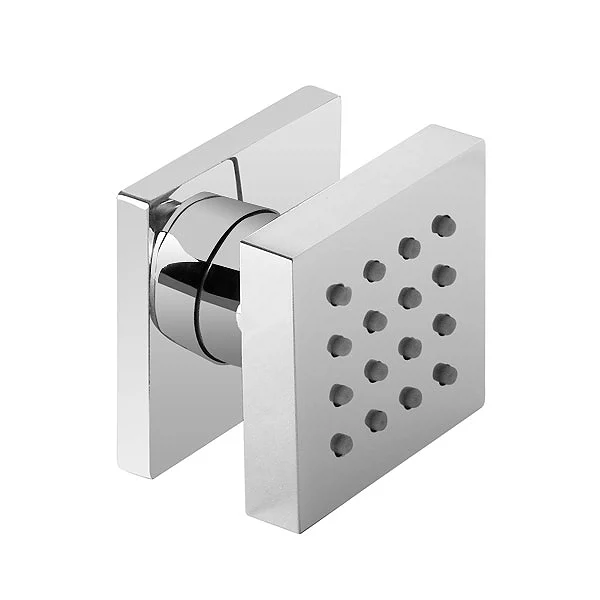

Body Jet Details

• Overall Size: D60 x W50 x H50mm approx
• Shroud: H50 x W50 mm
• Brass 1/2 inch BSP thread – 25mm long
• 16 rubber nozzles
• Colour/Finishes: Polished Chrome
• Material: Brass
• Product Type: Slim Square Body Jet
• Supplied with swivel joint
• Silicone nozzles mean that any limescale deposits can simply be rubbed away

Pictures for illustrative purposes only.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

Comprises

(1) Milan Twin Square Concealed Shower Valve with Diverter – Chrome
(1) 200 x 200mm Square Head
(1) Square Shower Arm
(4) Body Jets

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
