Milan Bathroom Milan Square Shower Package With Concealed Valve + Flat Fixed Shower Head

Milan Square Shower Package with Concealed Valve + Flat Fixed Shower Head

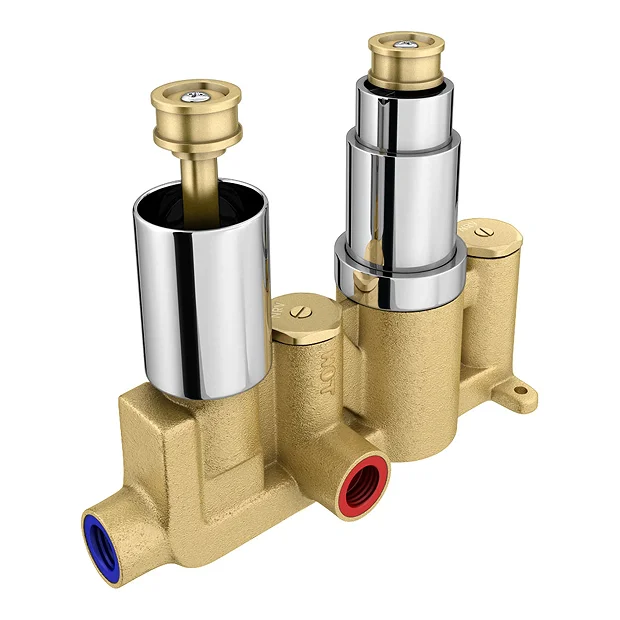

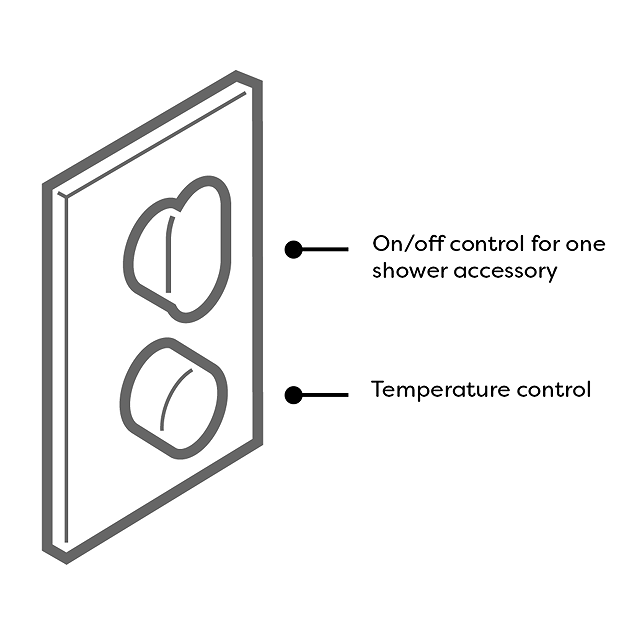

Want to give your en-suite a quick makeover? Choose the Milan Square Shower Package to add a designer boost to your space. This concealed shower valve is thermostatically controlled and expertly crafted from brass for superior durability. Fit the contemporary chrome plated faceplate vertically or horizontally and use the two polished square handles to manage water temperature and flow with ease.

The matching chrome effect rainfall shower head is wall mounted and has a slim profile for a minimalist aesthetic. It’s made from stainless steel to keep moisture damage at bay and will last for years to come.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Depth: 138mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Brass Internals
• Thermostatically controlled
• Rectangular Faceplate
• Can be fitted vertically or horizontally
• Water Pressure: 0.5 bar to 5 bar

• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

• Should a pump be required we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Shower Head Details

• Dimensions: 220 x 500mm
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel
• Pressure requirement: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Wall Mounted
• Rub clean nozzles makes this item easy to clean and maintain
• Shower head is fixed onto the wall with two expansion screws, and comes with a long 1/2″ male threaded adapter which can be connected to the water supply.
• Installation of the shower head requires rear access behind the wall.


Product pictures for illustrative purposes only.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises


(1) Milan Twin Square Concealed Shower Valve – Chrome
(1) Milan Square Flat Fixed Shower Head

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
