Milan Bathroom Milan Square Top Outlet Thermostatic Bar Shower Valve – Chrome

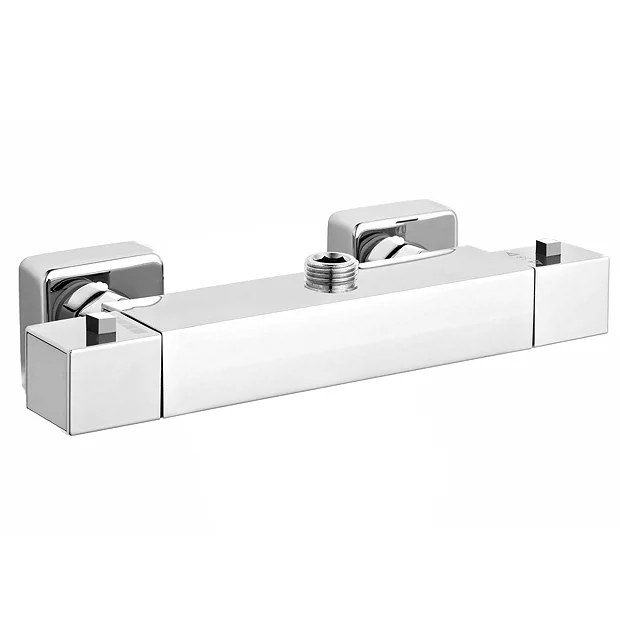

Milan Square Top Outlet Thermostatic Bar Shower Valve

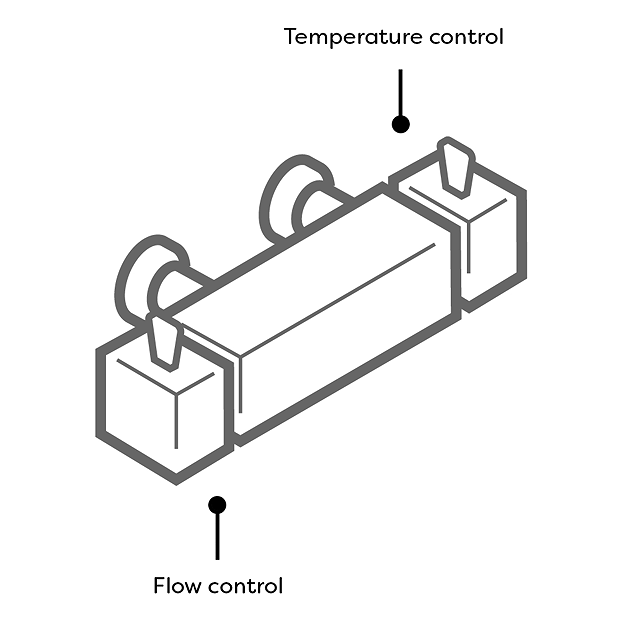

The Milan exposed thermostatic bar valve with top outlet is part of our contemporary collection of bathroom products. Modern styling with chrome finish and constructed from solid brass, the Milan bar valve has two controls, one controls the flow and the other controls the temperature. Featuring the latest anti-scald technology, the valve is pre-set to a safe and optimal 38°C, this can be easily offset by holding down the safety push and click button on the handle. Designed to be used with a rigid riser kit (not included).

Product Details

• Width: 271mm
• Depth: 69mm
• Height: 35mm
• Style: Modern
• Range: Bar Showers
• Handles: Square
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Top Outlet
• Thermostatically controlled
• Built-in anti-scald device
• Separate controls for temperature and flow
• Easy installation
• Factory pre-set temperature 38°
• Recommended Water Pressure: 0.5 bar to 5 bar
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product images for illustration purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
