Milan Bathroom Milan Triple Square Concealed Thermostatic Shower Valve – Chrome

Milan Triple Square Concealed Thermostatic Shower Valve – Chrome

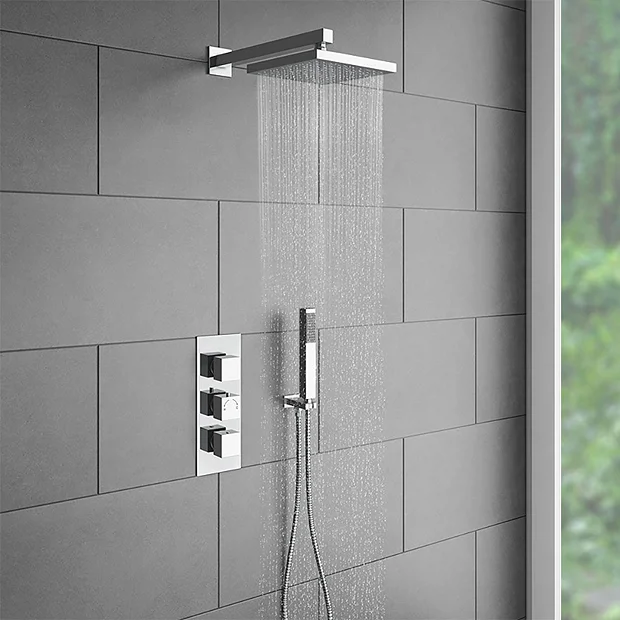

The Concealed Thermostatic Shower Valve by Milan offers a chic, understated look. This shower mixer valve is hidden behind a polished chrome panel that sits flush with the wall, while chunky square controls let you adjust water flow and temperature with ease. This two-outlet valve means you can operate two outlets separately and simultaneously, making it the ideal choice for fixed head showers with added handsets, slide rails or body jets.

Product Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• High Quality Design
• Finish: Polished Chrome

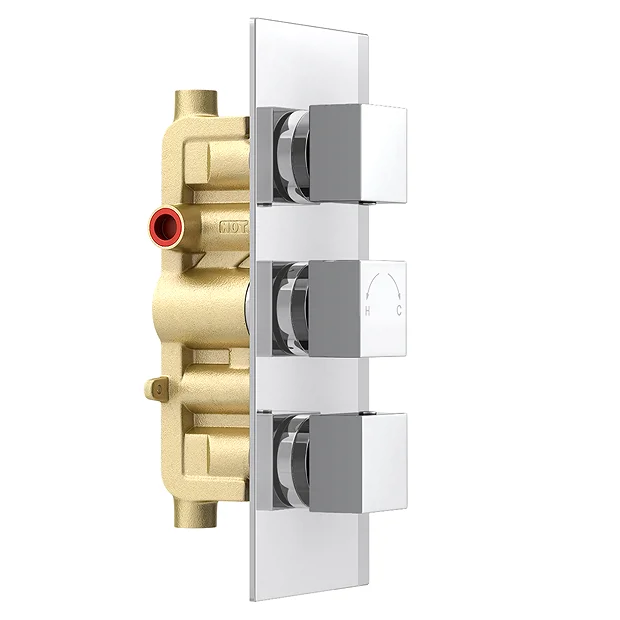

• Brass Internals

• Thermostatically controlled
• Valve Handles: Square

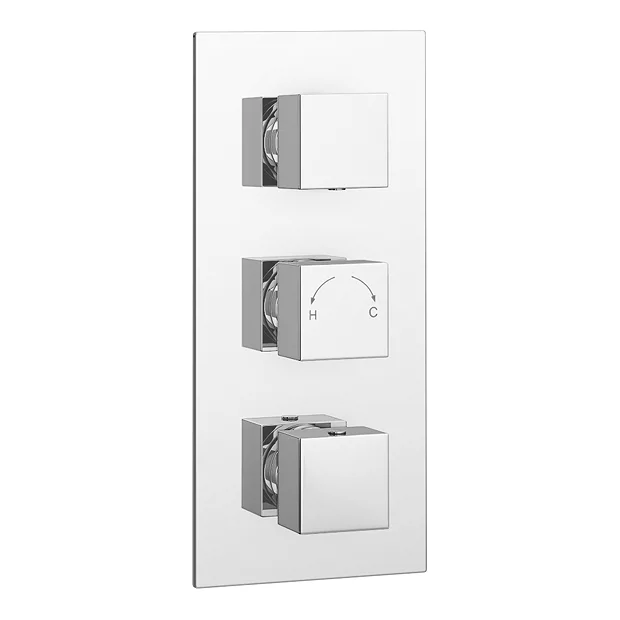

• Rectangular Faceplate
• Outlets: 2

• Style: Modern
• Operates two points separately or simultaneously
• Water Pressure: 0.5 bar to 5 bar

• Suitable for modern pressurised plumbing systems.

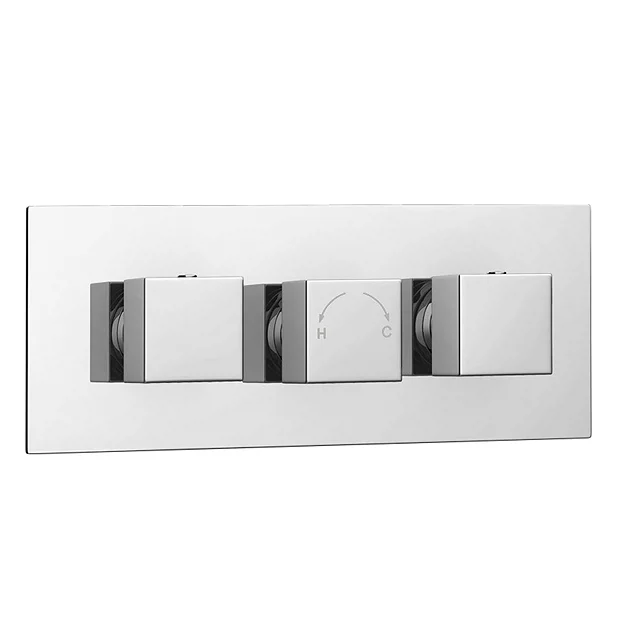

• Can be fitted vertically or horizontally

• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M


Pictures for illustrative purposes only.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
