Milan Triple Square Concealed Thermostatic Shower Valve with Diverter – Chrome

This Milan Triple Square Concealed Thermostatic Shower Valve with Diverter blends superior design with impressive functionality. The thermostatic triple shower valve offers you the option of using two water outlets separately or simultaneously, as well as diverting to a third option. The result? You don’t have to choose between a shower head, body jets and a bath flow – you can have them all. Square valve handles, a concealed shower valve and a rectangular faceplate fit naturally in a minimalist style bathroom and can be fitted vertically or horizontally to work neatly into the desired space.

Product Details

• Height: 265mm
• Width: 120mm
• Depth: 140mm
• High Quality Design
• Finish: Polished Chrome
• Brass Internals
• Thermostatically controlled
• Valve Handles: Square
• Rectangular Faceplate
• Style: Modern
• Built-in Diverter
• Water Pressure: 0.5 bar to 5 bar

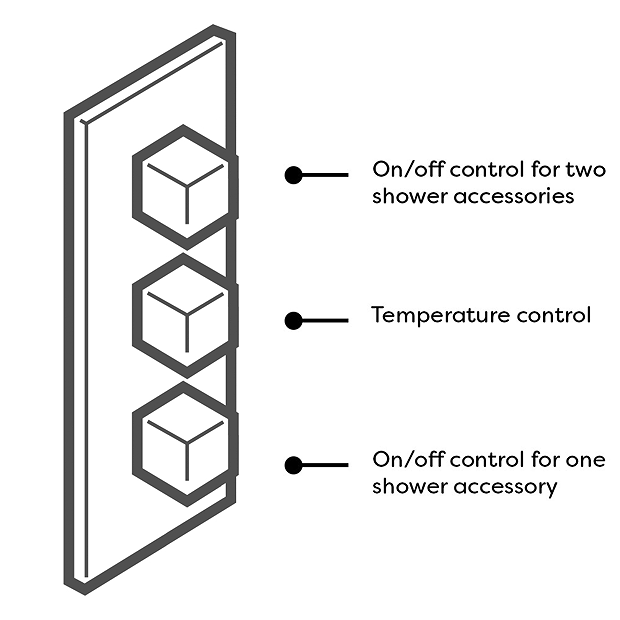

• Operates two outlets separately or simultaneously and diverts to a third option
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump

• Can be fitted vertically or horizontally
• Flow Rates:
• 0.5 bar – 7.8 L/M
• 1 bar – 11.1 L/M
• 2 bar – 16 L/M
• 3 bar – 19.5 L/M
• 4 bar – 22.8 L/M
• 5 bar – 25.5 L/M

Pictures for illustrative purposes only

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
