Milan Bathroom Milan Twin Concealed Thermostatic Valve + 400x400mm Rainfall Shower Head

Milan Twin Concealed Thermostatic Valve + 400x400mm Ceiling Mounted Rainfall Shower Head

This super sleek Milan concealed shower package with mirror-chrome finish provides you with everything you need to give your enclosure/wet room a stylish designer makeover.
Features a modern concealed one outlet shower valve with minimalist square handles and a matching stainless steel large ultra thin square ceiling mounted rainfall shower head with rub clean nozzles.

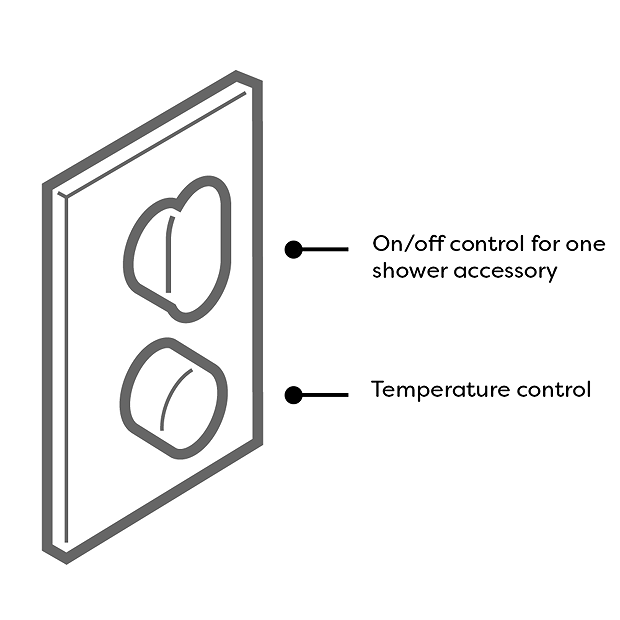

This quality concealed thermostatic shower valve offers thermostatic showering via two easy-to-operate controls. Separate controls for temperature and flow.

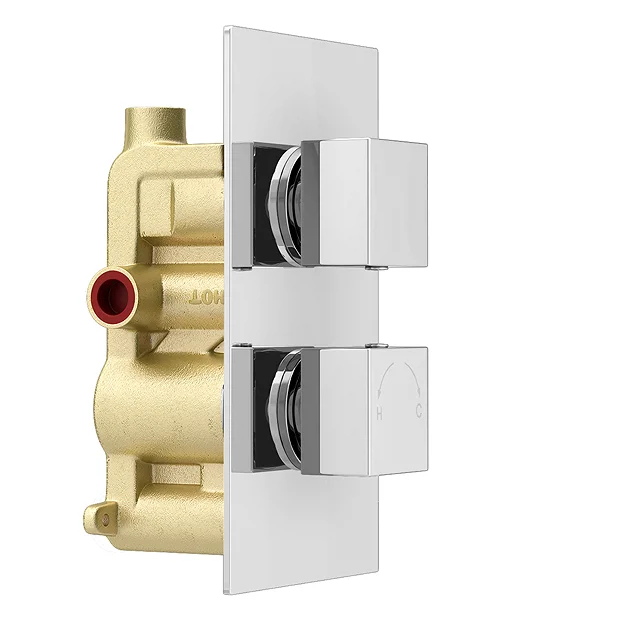

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square

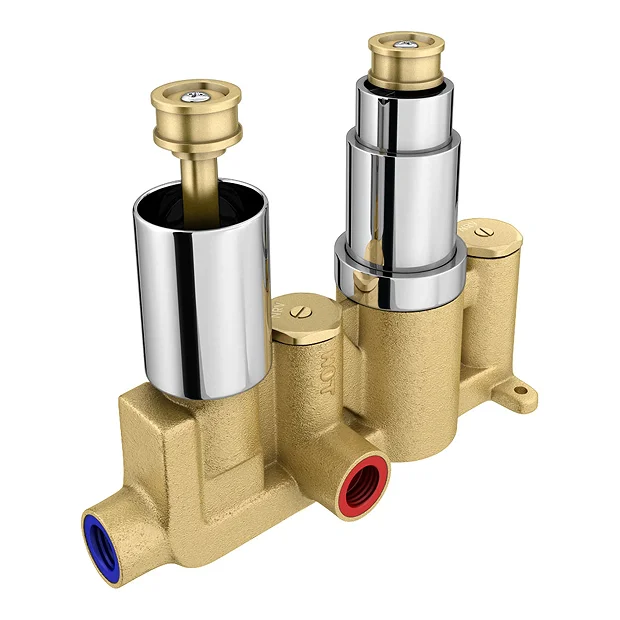

• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

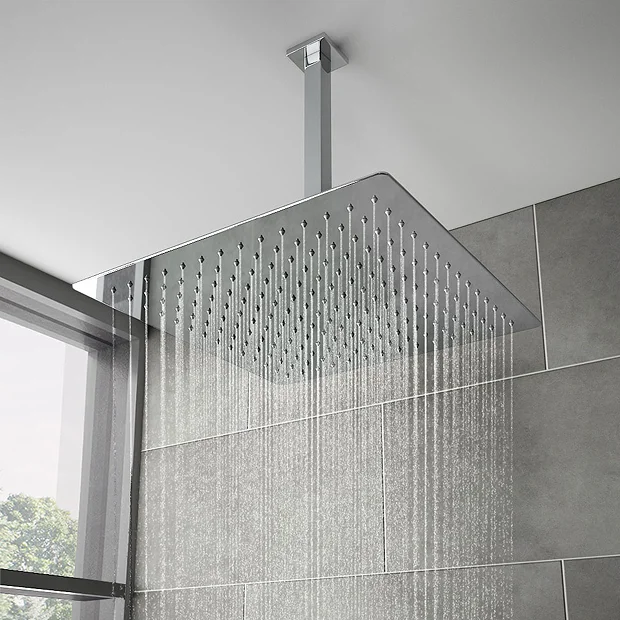

Shower Head Details

•
  Style: Modern

•
  Shape: Square

•
  Colour/Finish: Chrome Effect

•
  Material: Stainless Steel

•
  Dimensions: 400 x 400mm

•
  Thickness/Profile: 2mm (excluding swivel joint)

•
  Pressure requirement: 0.5 bar minimum

•
  Inlet Connections: 1/2″ BSP

•
  Supplied with 360 Degree
•
  Swivel Ball Joint

•
  Rub clean nozzles makes this item easy to clean and maintain

Shower Arm Details

• Height: 150mm

• Finish: Chrome

•
  Product Type: Contemporary

• Ceiling Mounted

•
  Supply: Suitable for all plumbing systems

•
  Inlet Connections: 1/2″ BSP

•
  Working Pressures: Min 0.2bar, Max 8.0bar

•
  Supplied with metal backnut.

•
  Designed to be used in conjunction with shower heads/roses shower valves.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Pictures for illustrative purposes only

All measurements are approximate

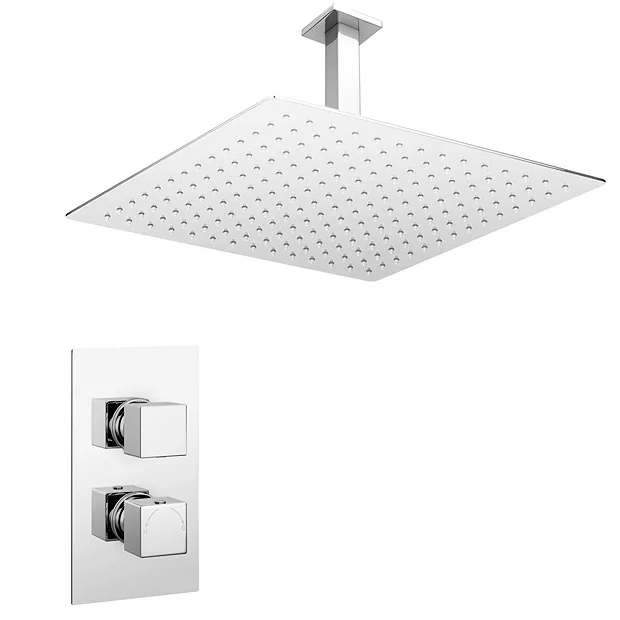

Comprises

(1) Milan Large Ultra Thin Square Shower Head (400 x 400mm)

(1) Chrome Square Ceiling Fed Shower Arm

(1) Milan Twin Modern Square Concealed Shower Valve – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
