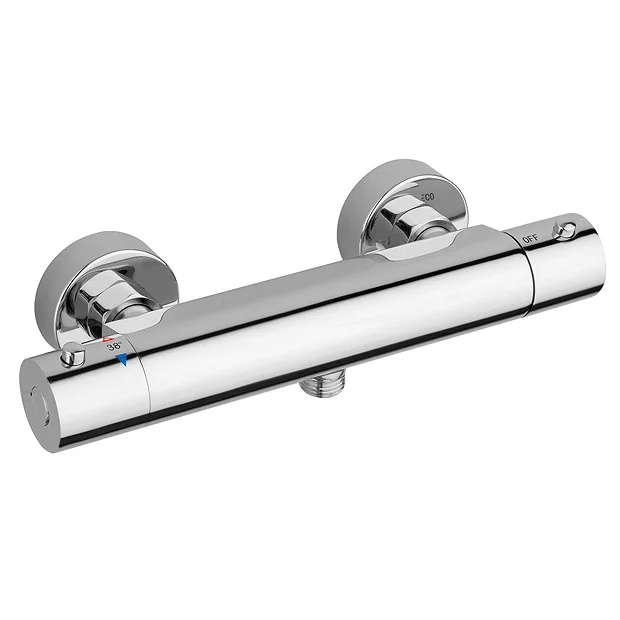

Monza­­ Bathroom Monza Cool Touch Thermostatic Bar Valve + Slider Rail Kit

Monza Cool Touch Thermostatic Bar Valve with Slide Rail Kit with 122mm 3-Spray Hand Shower

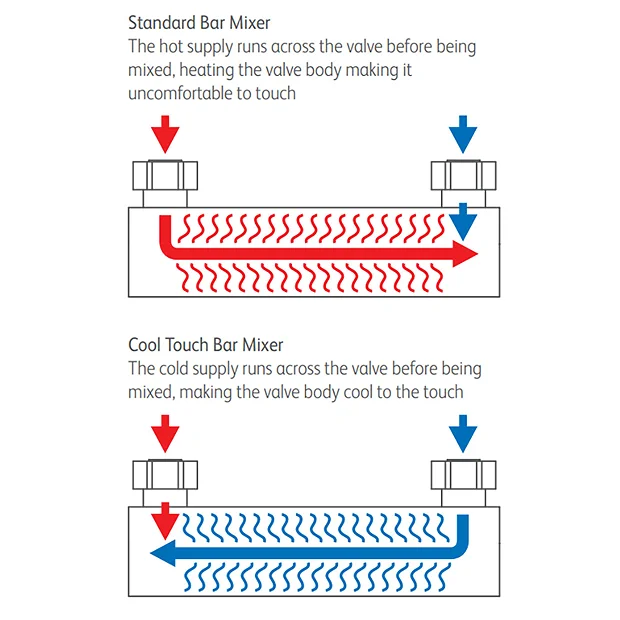

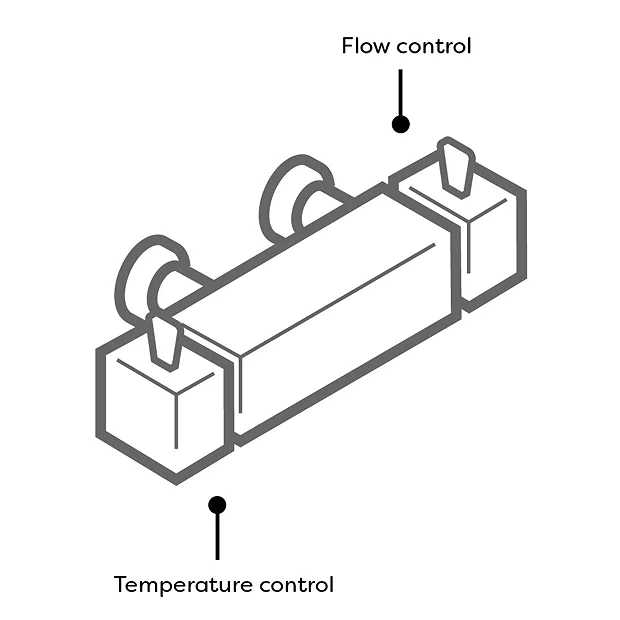

The stylish Monza ‘Cool Touch’ thermostatic bar valve, designed to provide safe showering for all the family. This stunning minimalist chrome bar valve has separate controls for temperature and flow. Cold water is circulated around the bar valve itself so that it is cool to the touch.

Supplied with a modern slide rail kit with 3-spray hand shower and smooth silver hose. Featuring a sleek design, the stunning slide rail kit is designed and manufactured using the finest methods and materials to ensure a high-quality product. With its clean lines the Monza shower will naturally blend in with and compliment any modern bathroom.

Bar Valve Details

• Width: 297mm
• Depth: 71mm
• Height: 40mm
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Water Pressure: MP – 0.5 bar pressure minimum
• Wall Mounted
• Thermostatic: anti-scald protection
• Bottom outlet: suitable for use with a slide rail kit (not included).
• 150mm between pipe inlet centres
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

Slider Rail Kit Details

• Height: 675mm
• Rail Diameter: 25mm
• Handset Diameter: 122mm
• Highly polished finish
• Smooth silver hose
• 3-Spray patterns
• Push button spray selector
• Easy clean shower head
• Shower Hose Length: 1.5m
• Working Pressure: 0.5 Bar – 5 Bar

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only.

Comprises

(1) Monza Cool Touch Shower Bar Valve
(1) Monza Slide Rail Kit with 122mm 3-Spray Hand Shower

Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
