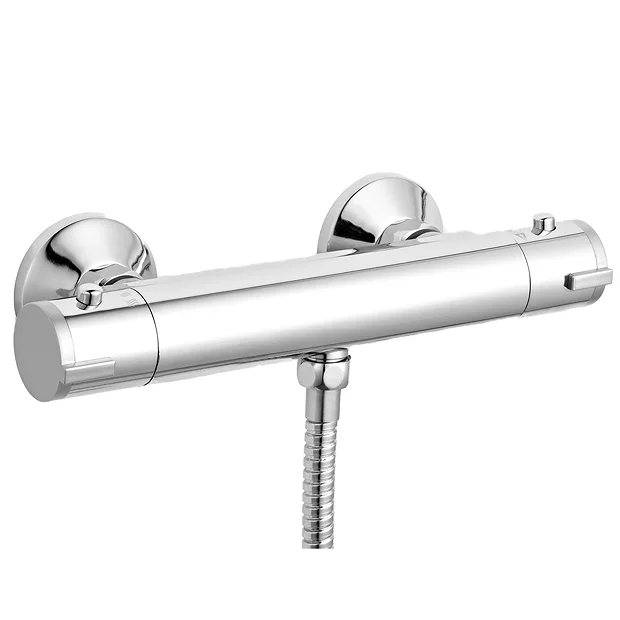

Nuie ABS Round Thermostatic Bar Valve – Bottom Outlet – Chrome

Nuie ABS Round Thermostatic Bar Valve – Bottom Outlet – Chrome – VBS001

This ABS Bar Valve is designed to be wall mounted, the valve is thermostatic allowing the user to control the temperature from the bar valve. The valve is designed and manufactured by leading bathroom brand Nuie, Nuie deliver high quality products at great value. The outlet connection is located on the bottom/Base of the valve.

Product Details

• Width: 266mm
• Depth: 66mm
• Code: VBS001
• Colour/Finish: Polished Chrome
• Material: ABS plastic
• Water Pressure: MP – 0.5 bar pressure minimum
• Wall Mounting
• Thermostatic: anti-scald protection.
• Bottom outlet: suitable for use with a slide rail kit (not included).
• Standards: EN200 and/or WRc/NSF
• Suitable for all plumbing systems

Guarantee: 5 Year

Flow Rates

0.1 Bar – 1.5 l/m
0.5 Bar – 5 l/m
1.0 Bar – 8 l/m
2.0 Bar – 11 l/m
3.0 Bar – 14 l/m
