Nuie Arvan Twin Concealed Thermostatic Shower Valve

Nuie Arvan Twin Concealed Thermostatic Shower Valve – ARVTW01

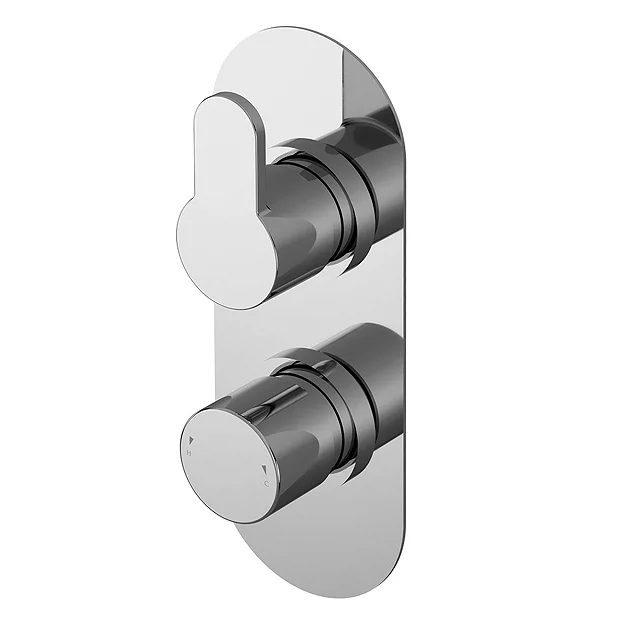

For a sleek and contemporary look, the Arvan Twin Concealed Thermostatic Shower Valve is a great option. It features a rounded faceplate and matching round controls and comes beautifully finished in chrome.

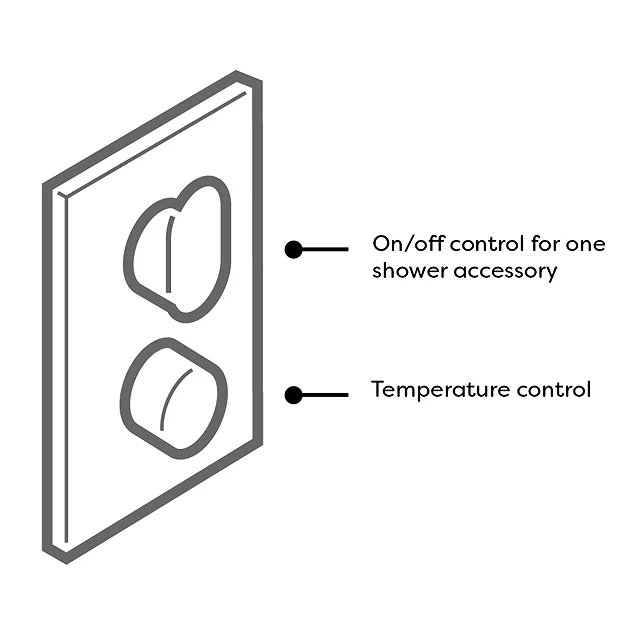

This concealed shower valve has two easy controls, for temperature and flow. Designed to operate one bath/shower accessory i.e. bath spout, slide rail kit or overhead shower.

Product Details

• Brand: Nuie
• Product Code: ARVTW01
• Height: 215mm
• Width: 80mm
• Depth: 136mm
• Finish: Chrome
• Thermostatically controlled
• Material: Brass / ABS
• Concealed shower
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 1/2″
• Operating Pressure: 0.1 bar
• For use with 1 Outlet
• Approvals: WRAS, TMV2, TMV3

All measurements are approximate

Guarantee: 5 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.2 Bar – 7.1 l/m
0.5 Bar – 14 l/m
1 Bar – 20 l/m
2 Bar – 29 l/m
3 Bar – 44 l/m
