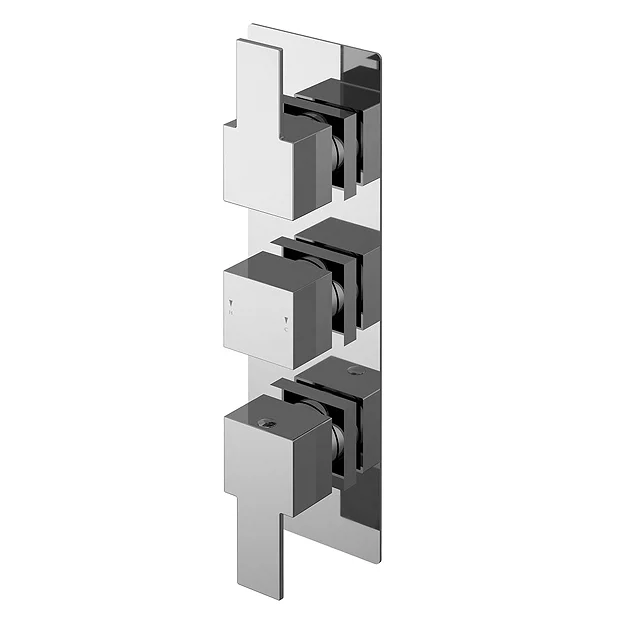

Nuie Sanford Triple Concealed Thermostatic Shower Valve

Nuie Sanford Triple Concealed Thermostatic Shower Valve – SANTR02

With sleek lines and modern angular design, the Sanford Triple Concealed Thermostatic Shower Valve is the perfect upgrade for all contemporary bathrooms. Made from high quality materials and beautifully finished in chrome.

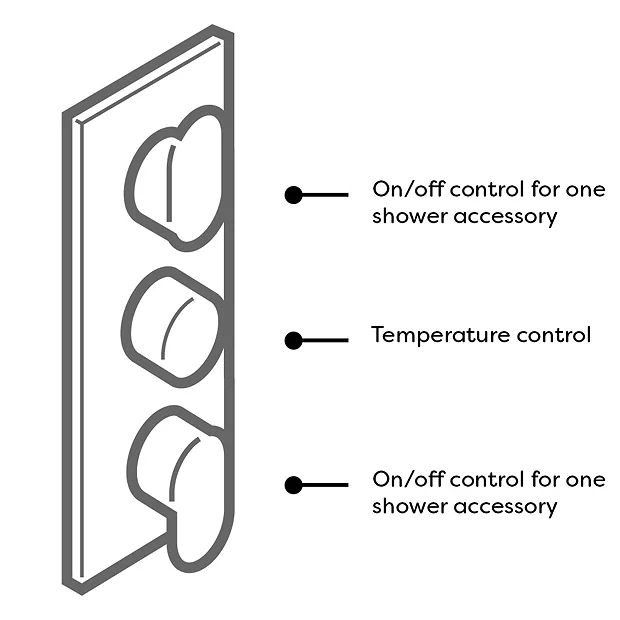

This concealed shower valve operates two shower accessories separately or simultaneously – Fixed head / Slide rail kit, Fixed head / Body jets or Slide rail kit / Body jets.

Product Details

• Brand: Nuie
• Product Code: SANTR02
• Height: 280mm
• Width: 120mm
• Depth: 135mm
• Finish: Chrome
• Thermostatically controlled
• Material: Brass / ABS
• Concealed shower
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 15 mm & 22 mm
• Operating Pressure: 0.1 bar
• For use with 2 Outlets (separately or simultaneously)
• Built-In Diverter
• Approvals: WRAS, TMV2, TMV3

All measurements are approximate

Guarantee: 5 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.2 Bar – 7.1 l/m
0.5 Bar – 14 l/m
1 Bar – 20 l/m
2 Bar – 29 l/m
3 Bar – 44 l/m
