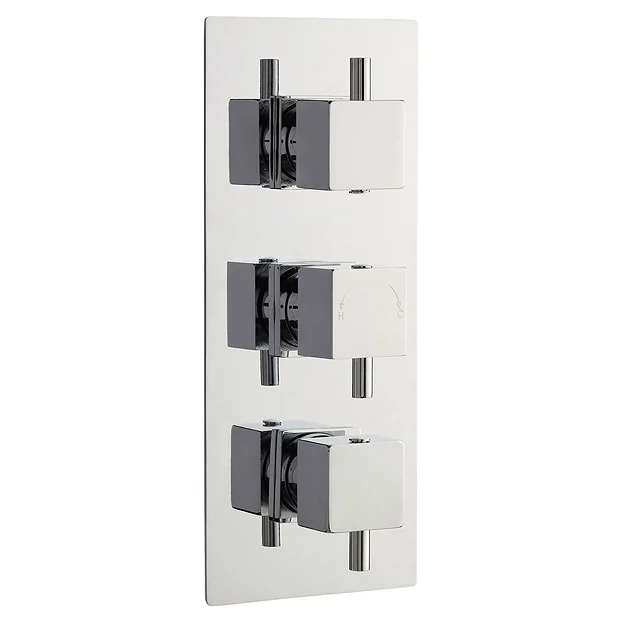

Nuie Square Triple Concealed Thermostatic Shower Valve With Diverter

Nuie Square Triple Concealed Thermostatic Shower Valve with Diverter – JTY311

Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to free flow bath filler.

Product Details

• Height: 280mm
• Width: 120mm
• Depth: 135mm
• Product Code: JTY311
• Colour/Finish: Chrome
• Manufactured from high quality brass & ABS
• 3 outlet options
• Product Type: Thermostatic Shower Valve
• Water Pressure: MP 0.5 bar pressure minimum
• Standards: EN200 and/or WRc/NSF
• Requirement: Suitable for all plumbing systems that will deliver 0.5 bar pressure
• Can be fitted vertically or horizontally

Guarantee: 5 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 12 l/m
1.0 Bar – 18 l/m
2.0 Bar – 25 l/m
3.0 Bar – 31 l/m
