Nuie Windon Twin Concealed Thermostatic Shower Valve With Diverter

Nuie Windon Twin Concealed Thermostatic Shower Valve with Diverter – WINTW02

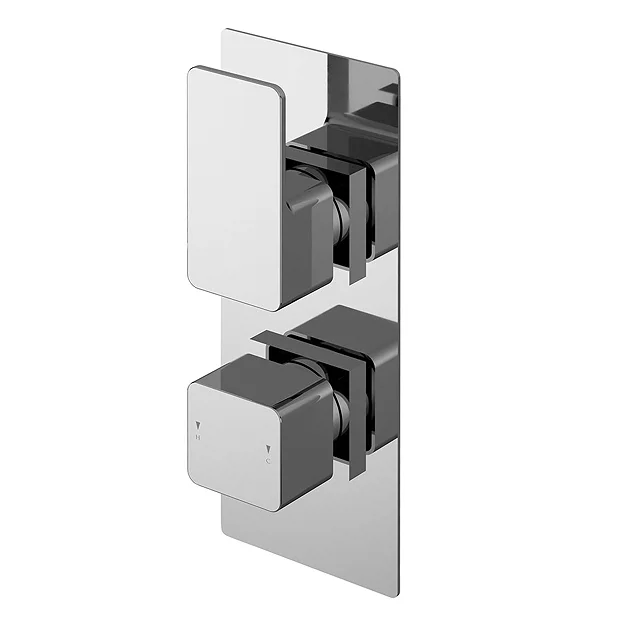

With sleek lines and modern angular design, the Windon Twin Concealed Thermostatic Shower Valve with Diverter is the perfect upgrade for all contemporary bathrooms. Made from high quality materials and beautifully finished in chrome.

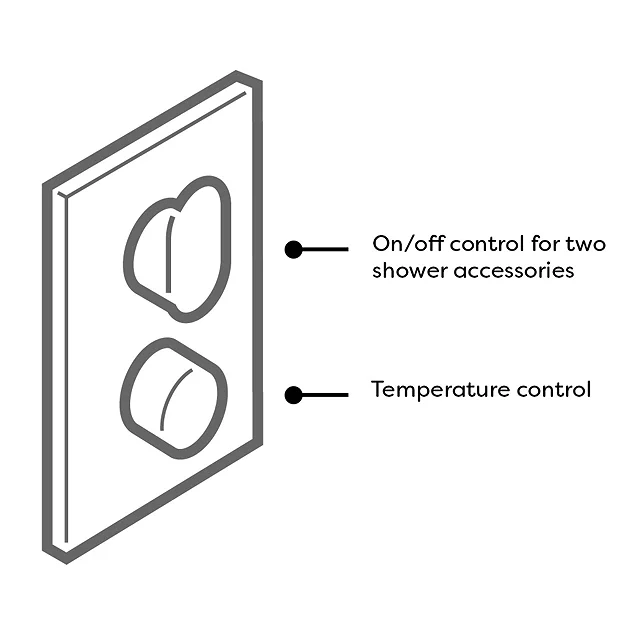

This concealed shower valve has two easy controls, for temperature and flow. Diverts between two shower accessories: fixed head/slide rail kit, fixed head/body jets or slide rail kit/body jets.

Product Details

• Brand: Nuie
• Product Code: WINTW02
• Height: 215mm
• Width: 120mm
• Depth: 135mm
• Finish: Chrome
• Thermostatically controlled
• Material: Brass / ABS
• Concealed shower
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 22 mm (3/4″ BSP)
• Operating Pressure: 0.5 bar
• For use with 2 Outlets
• Built-in diverter

All measurements are approximate

Guarantee: 5 Year

Flow Rates

0.5 Bar – 13 l/m
1 Bar – 17 l/m
2 Bar – 24 l/m
3 Bar – 27 l/m
