Ultra Vibe Concealed Thermostatic Twin Shower Valve

Ultra Vibe Concealed Thermostatic Twin Shower Valve – VIBV51

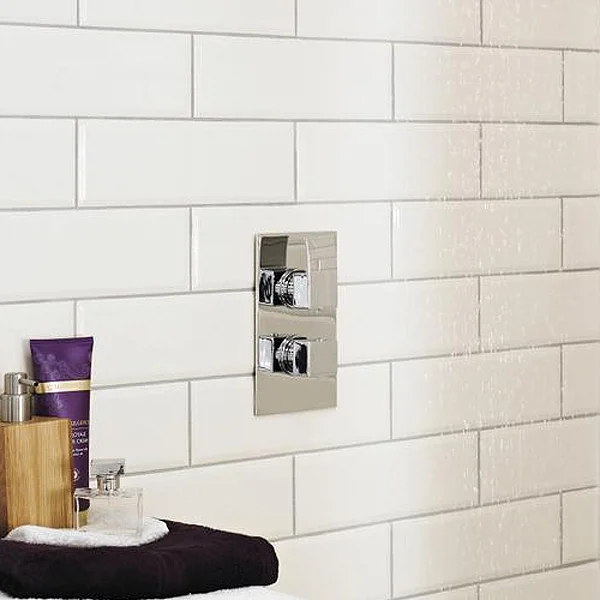

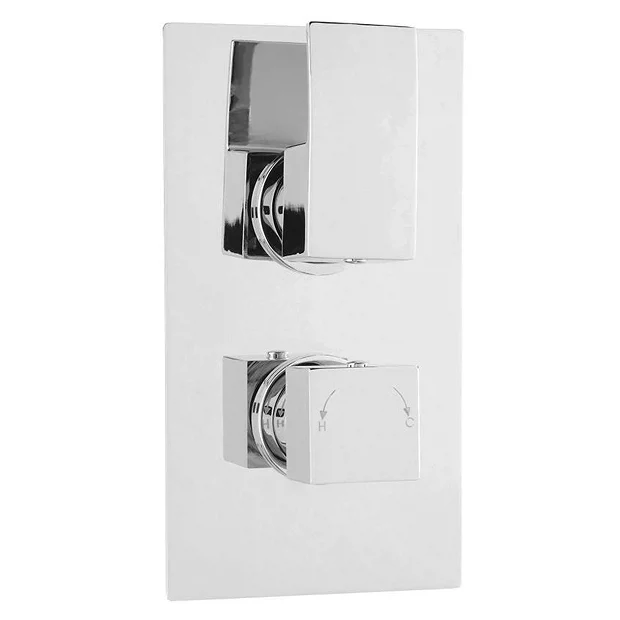

The Vibe concealed minimalist thermostatic twin shower valve with rectangular plate from Ultra offers a simple shower solution with a neat finish and is suitable for use with all water systems.

Features minimalist easy to operate controls, the top control turns the water on and off and the bottom control adjusts the temperature.

Operates one shower accessory, choose a fixed head or slide rail kit (sold separately).

Product Details

• Height – 215mm
• Width – 120mm
• Depth – 135mm
• Product Code – VIBV51
• Brand – Ultra
• Colour/Finish – Polished Chrome
• Material – solid brass.
• Can be fitted vertically or horizontally.
• Water Pressure – LP1 – 0.1 bar minimum
• Pipework is concealed for a minimalist look
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.

Made in Britain and TMV2/TMV3 approved – ensuring it has been tested to the highest standards.

WRAS approved Product

Guarantee – 10 Year

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 14 l/m
1.0 Bar – 20 l/m
2.0 Bar – 29 l/m
3.0 Bar – 44 l/m
