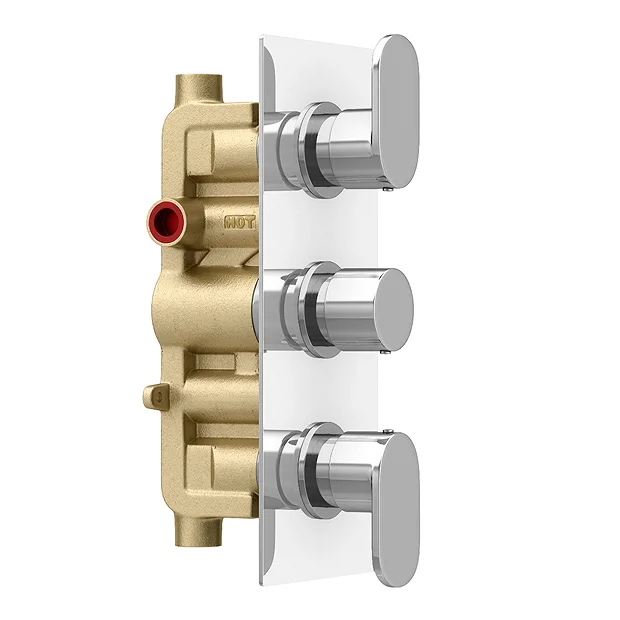

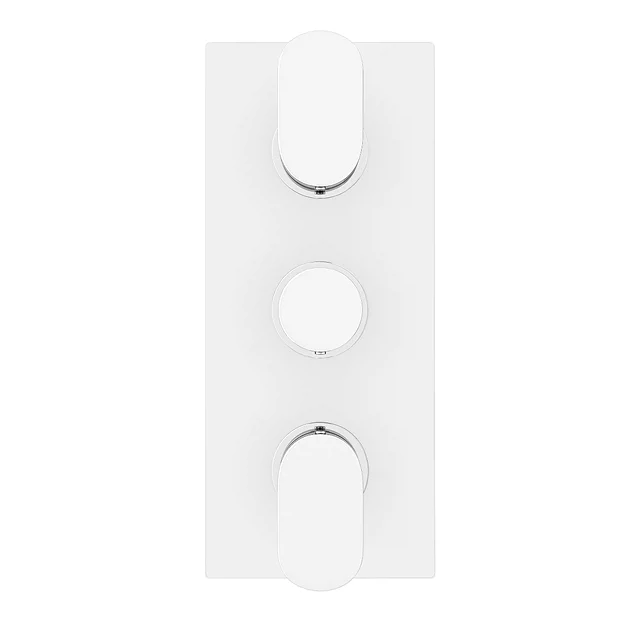

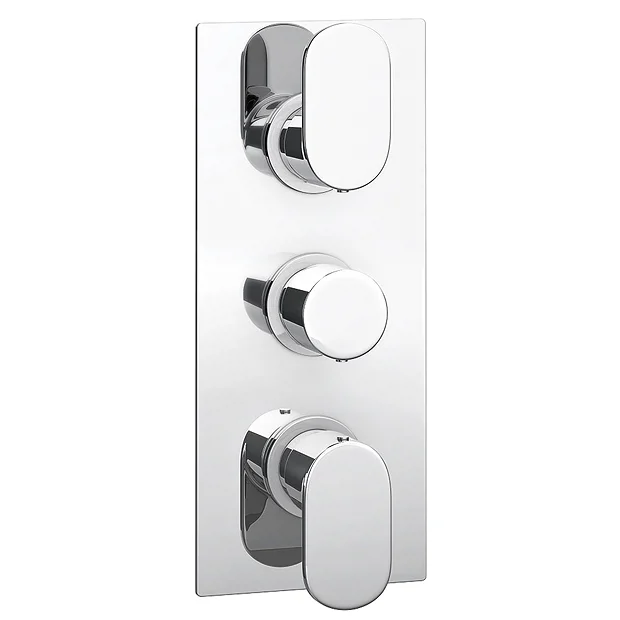

Victorian Plumbing Amos Concealed Thermostatic Triple Shower Valve

Amos Concealed Thermostatic Triple Shower Valve – Chrome

The modern Amos triple concealed thermostatic shower valve will compliment any modern bathroom suite with it’s stylish rounded handles, offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously e.g. Fixed head / Slide rail kit, Fixed head / Body jets or Slide rail kit / Body jets.

Product Details

• Height: 280mm
• Width: 120mm
• Depth: 134.5mm
• Colour/Finish: Chrome
• Manufactured from solid brass
• Style: Modern
• Water Pressure – LP1 – 0.1 bar pressure minimum
• Rounded contour flat lever handle
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180 degrees and replace.
• Use in conjunction with our excellent range of shower heads (sold separately)
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.1 bar – 5.5 L/M
• 0.5 bar – 14 L/M
• 1 bar – 20 L/M
• 2  bar – 29 L/M
• 3 bar – 44 L/M

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
