Victorian Plumbing Pablo Shower Package With Concealed Crosshead Valve + Head

Pablo Shower Package with Concealed Crosshead Valve + Head

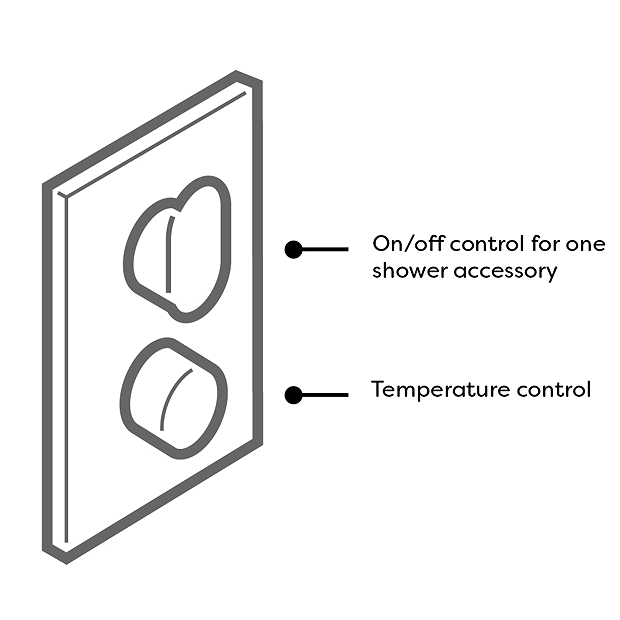

This Pablo Concealed Thermostatic Valve will compliment any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. Supplied with 300mm ultra thin fixed shower head with swivel joint and stylish 90-degree bend arm.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Depth: 140mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Cross Head

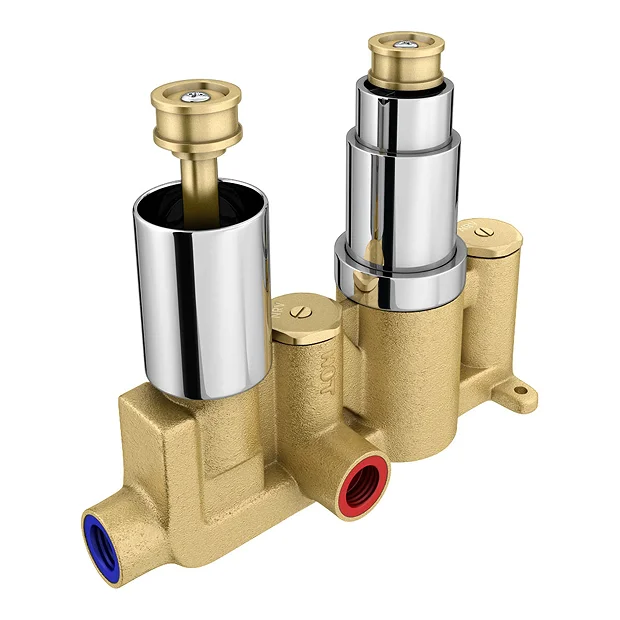

• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed

• Should a pump be required we recommend a universal or negative head pump

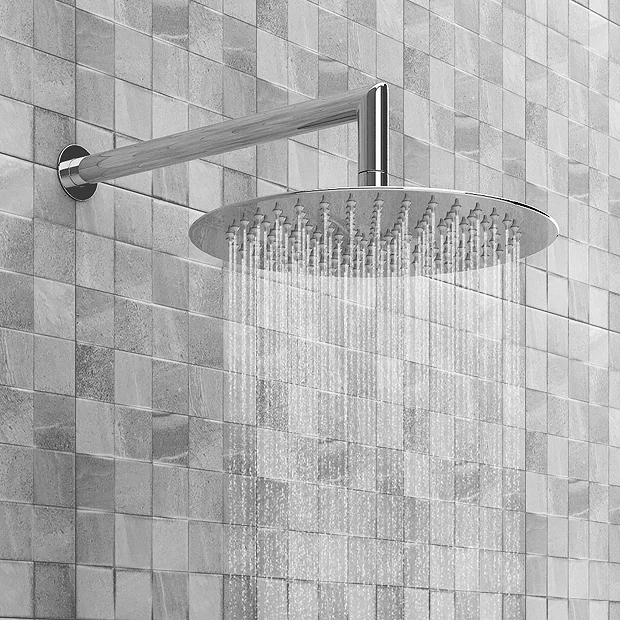

Shower Head and Arm Details

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Diameter: 300mm Head
• Rainfall Style
• Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 460mm
• Wall mounted 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Images are for illustrative purposes only

All measurements are approximate

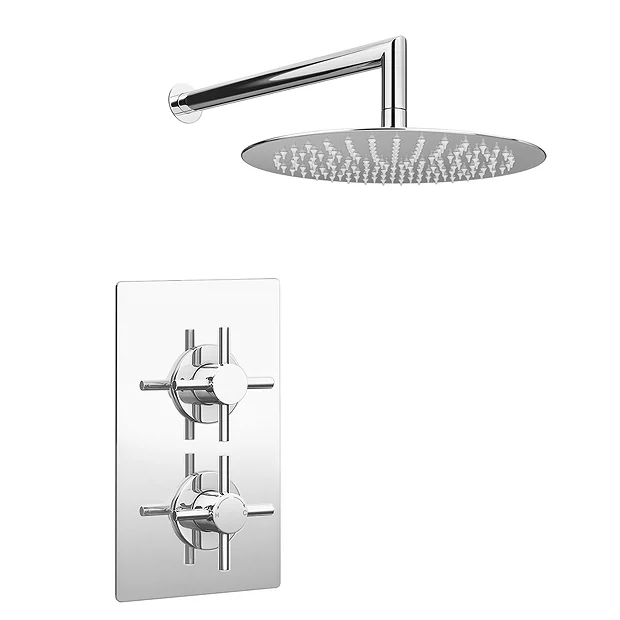

Comprises

(1) Twin Round Concealed Shower Valve
(1) Round Wall Mounted 90 Degree Bend Shower Arm 460mm – Chrome
(1) 300mm Ultra Thin Round Shower Head with Swivel Joint

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
